Sigen 5.0 Battery
Sigen 5.0 Battery
- Large cell capacity, low voltage & durable
- Multi-layer full battery safety protection
- Visible battery status on mySigen App
- Quick connectors for fast installation
- AI enablement, optimized battery cycle life
- Parallel connections for flexible battery mix
Availability:In stock
SKU SIG-BAT5.0

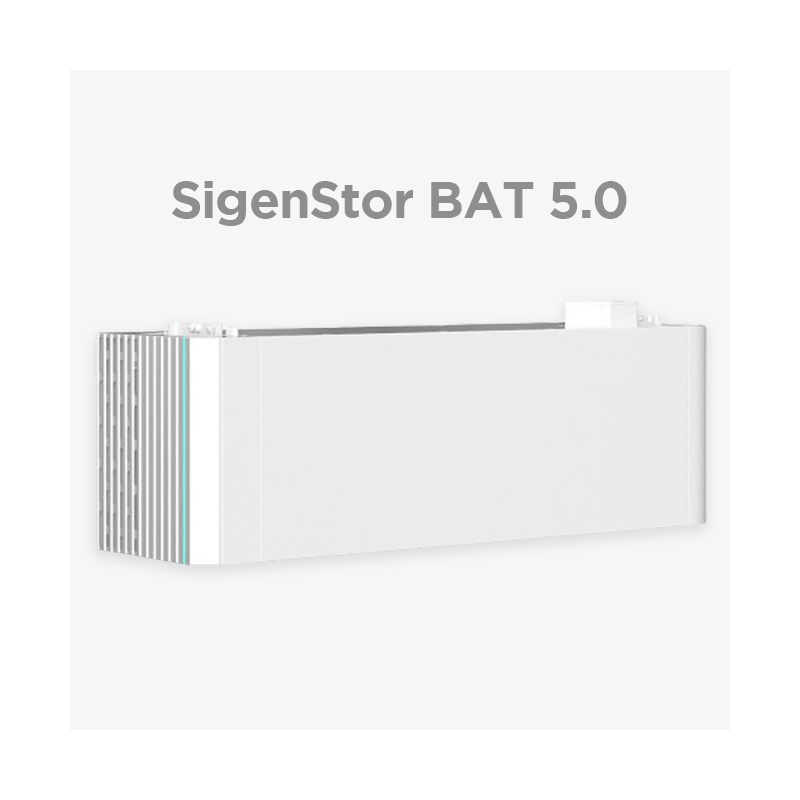

Sigen 5.0 Battery
The Sigen 5.0 Battery is a compact and efficient energy storage solution designed for residential and small commercial solar systems. With a 5.0 kWh usable capacity, it allows users to store excess solar energy for use during nighttime, peak hours, or unexpected power outages.
Utilizing advanced lithium battery technology, the Sigen 5.0 Battery delivers reliable performance, enhanced safety, and long service life. Its modular design enables easy system expansion, making it a flexible choice for evolving energy needs.
Key Features
- Usable Capacity: 5.0 kWh
- Battery Type: Advanced Lithium Technology
- Scalability: Modular and expandable design
- Efficiency: High round-trip efficiency
- Safety: Integrated battery management system (BMS)
- Reliable backup power during outages
- Optimized for solar energy storage applications
- Long lifespan with minimal maintenance
Applications
- Residential solar energy storage
- Small commercial systems
- Backup power solutions
- Energy cost optimization and peak shaving
Performance Specification
| Battery Type | LiFePO4 |
|---|---|
| Total energy capacity | 5.38 kWh |
| Usable energy capacity | 5.2 kWh |
| Battery modules voltage range | 300 ~ 900 V |
| Max. charge /discharge power | 4000 W |
| Max. charge /discharge current | 7.5 A |
| Peak charge /discharge power | 3750 W |
General Data
| Dimension (w/h/d) mm | 767/270/260 |
|---|---|
| Weight (kg) | 55.00 |
| Storage temperature range | -25 ~ 60°C |
| Operating temperature range | -20°C ~ +55°C |
| Operating humidity | 5% ~ 95% |
| Max. operation altitude | 4000 m |
| Cooling | Natural convection |
| Ingress protection rating | IP66 |
| Installation | Floor standing, Wall mount |
Standard Compliance
| Standard | IEC/EN 60730-1, UN 38.3, IEC/EN 62619, IEC/EN 63056, IEC/EN 62040 |
|---|
