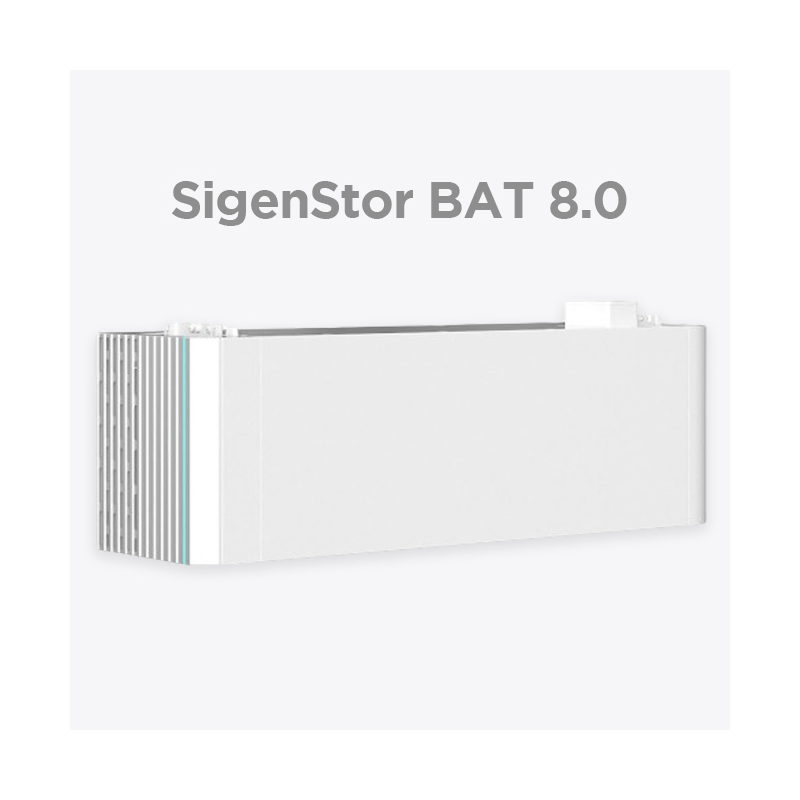

Sigen 8.0 Battery
Sigen 8.0 Battery
- Large cell capacity, low voltage & durable
- Multi-layer full battery safety protection
- Visible battery status on mySigen App
- Quick connectors for fast installation
- AI enablement, optimized battery cycle life
- Parallel connections for flexible battery mix
Availability:In stock
SKU SIG-BAT8.0
Sigen 8.0 Battery
The Sigen 8.0 Battery is a high-capacity energy storage solution designed to provide reliable, efficient, and flexible power for residential and commercial solar systems. With an 8.0 kWh usable capacity, it enables homeowners and businesses to store excess solar energy for use during nighttime, peak demand periods, or power outages.
Built with advanced lithium battery technology, the Sigen 8.0 Battery ensures high safety standards, long cycle life, and consistent performance. Its modular and scalable design allows for easy expansion, making it adaptable to growing energy needs.
Key Features
- Usable Capacity: 8.0 kWh
- Battery Type: Advanced Lithium Technology
- Scalability: Modular design for system expansion
- Efficiency: High round-trip efficiency
- Safety: Integrated battery management system (BMS)
- Reliable backup power during outages
- Optimized for solar energy storage systems
- Long lifespan with low maintenance requirements
Applications
- Residential solar energy storage
- Commercial and small industrial systems
- Backup power and energy independence solutions
- Peak shaving and load management
Performance Specification
| Battery Type | LiFePO4 |
|---|---|
| Total energy capacity | 8.06 kWh |
| Usable energy capacity | 7.8 kWh |
| Battery modules voltage range | 300 ~ 900 V |
| Max. charge /discharge power | 4000 W |
| Max. charge /discharge current | 12.0 A |
| Peak charge /discharge power | 6000 W |
General Data
| Dimension (w/h/d) mm | 767/270/260 |
|---|---|
| Weight (kg) | 70.00 |
| Storage temperature range | -25 ~ 60°C |
| Operating temperature range | -20°C ~ +55°C |
| Operating humidity | 5% ~ 95% |
| Max. operation altitude | 4000 m |
| Cooling | Natural convection |
| Ingress protection rating | IP66 |
| Installation | Floor standing, Wall mount |
Standard Compliance
| Standard | IEC/EN 60730-1, UN 38.3, IEC/EN 62619, IEC/EN 63056, IEC/EN 62040 |
|---|
