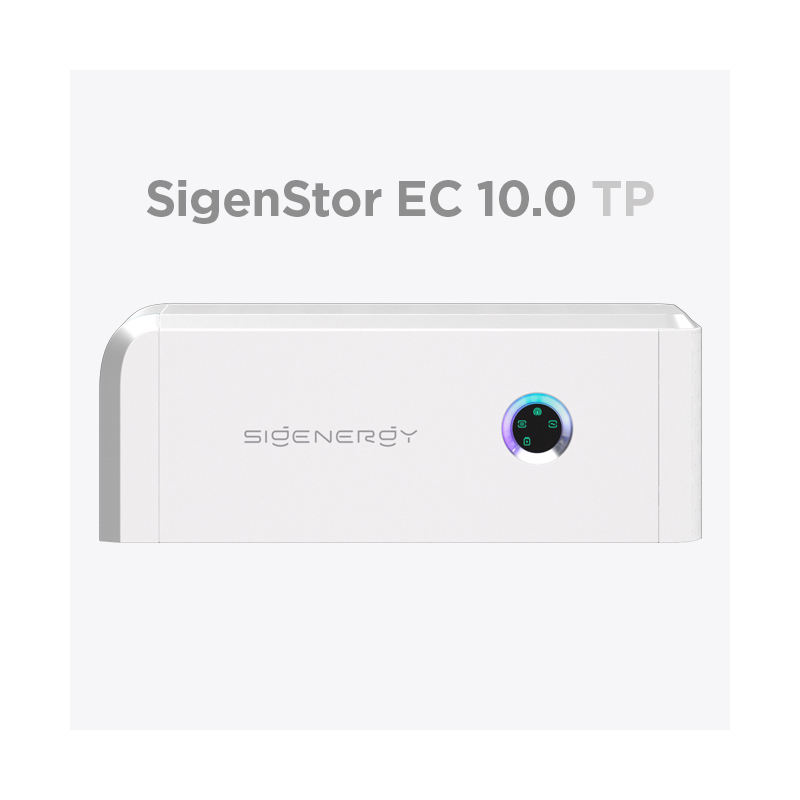

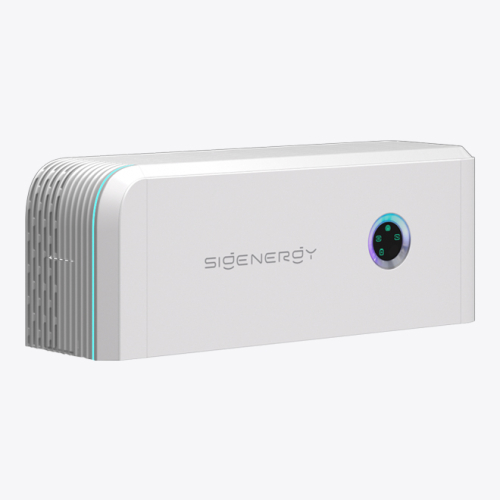

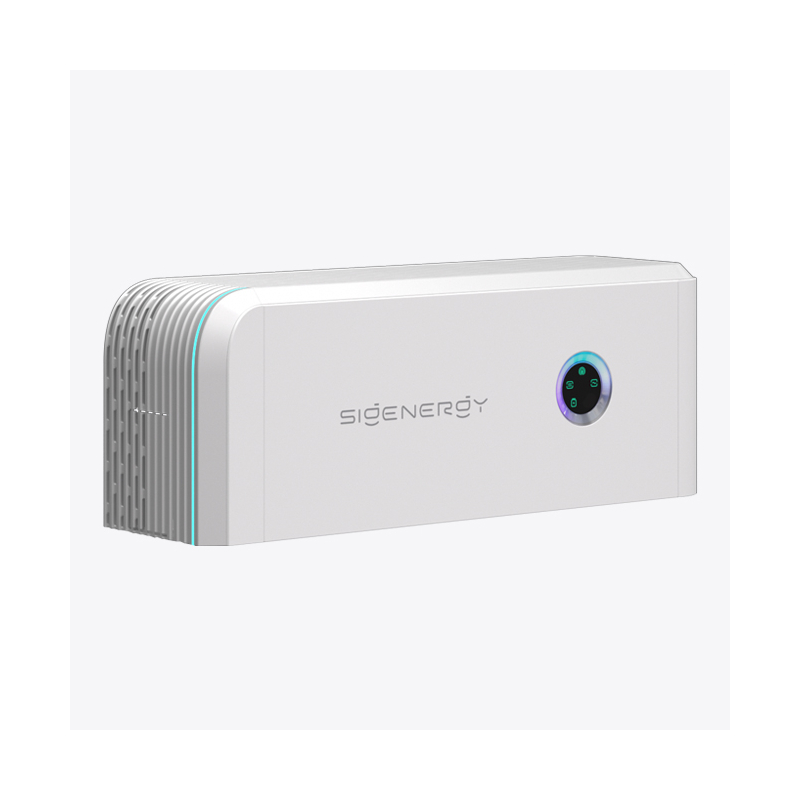

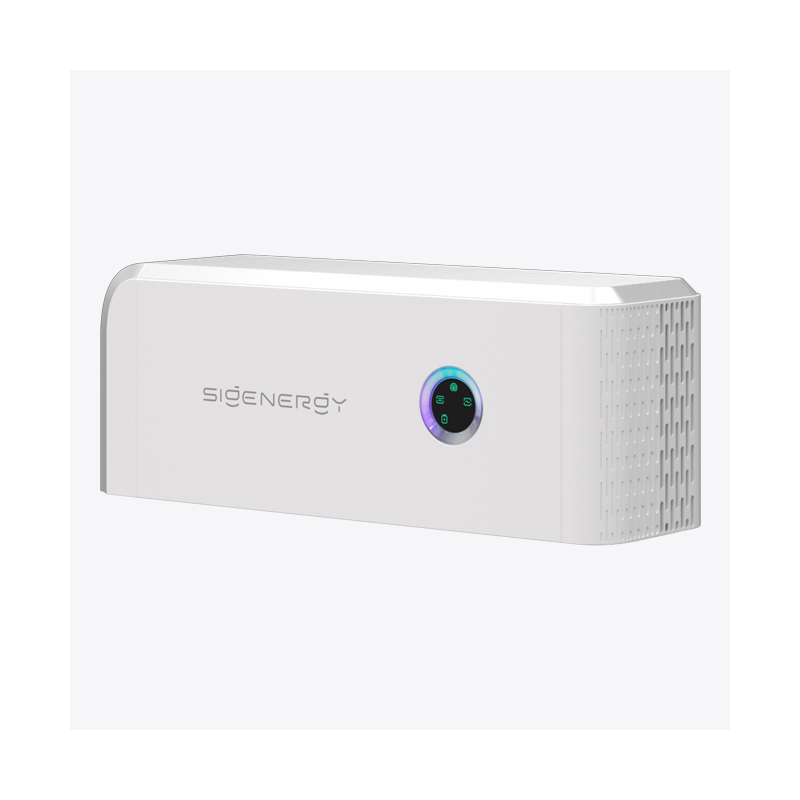

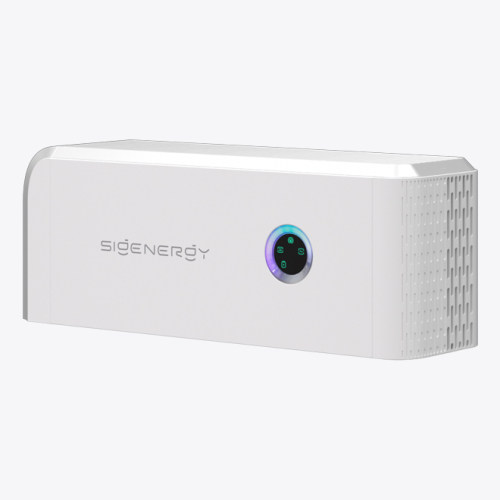

Sigen Energy Controller 10.0 kW Three Phase
Sigen Energy Controller 10.0 kW Three Phase
- EMS inside for precise control
- DC ground-fault protection
- Multi-source black start
- On & off-grid compatibility
- DC/AC ratio up to 1.6
- IP66 system protection rating
Availability:In stock
SKU SIG-EC10.0-TP
BrandSigenergy
Sigen Energy Controller 10.0 kW Three Phase
The Sigen Energy Controller 10.0 kW Three Phase is a smart hybrid inverter designed for efficient energy management in residential and small commercial three-phase systems. It seamlessly integrates solar generation, battery storage, and grid interaction to optimize energy usage and system performance.
As part of the SigenStor 5-in-One platform, it provides intelligent control, real-time monitoring, and reliable backup functionality. Its three-phase capability ensures balanced load distribution and improved efficiency for more demanding applications.
Key Features
- Rated Power: 10.0 kW
- Phase Type: Three Phase
- Hybrid inverter with advanced energy management
- Balanced load distribution across three phases
- Seamless integration with SigenStor battery systems
- Real-time monitoring and smart optimization
- Backup power capability
Technical Specifications
- Product Name: Sigen Energy Controller 10.0 kW Three Phase
- Rated Output Power: 10.0 kW
- Phase: Three Phase
- System Type: Hybrid (Solar + Battery + Grid)
- Battery Compatibility: SigenStor Battery Systems
- Monitoring: Smart monitoring and energy management system
- Backup Capability: Supported
- Installation: Wall-mounted or integrated system
- Application: Residential and small commercial three-phase systems
Resources
Installation Guide Alarm List Important Notice
Technical Specifications
| Max. Input Power (W) | 16000 |
|---|---|
| Max. DC Input Voltage (V) | 1100 |
| Nominal DC input voltage | 600 V |
| Start-up Voltage | 180 V |
| MPPT voltage range | 160-1000 V |
| No. of MPP Trackers | 3 |
| Number of PV strings per MPPT | 1 |
| Max. input current per MPPT | 16 A |
| Max. short-circuit current per MPPT | 20 A |
| Max. Efficiency | 98.3% |
General Data
| Dimension (w/h/d) mm | 700/300/260 |
|---|---|
| Weight (kg) | 36.00 |
| Storage temperature range | -40 ~ 70°C |
| Operating temperature range | -30°C ~ 60°C |
| Relative humidity range | 0% ~ 95% |
| Max. operation altitude | 4000 m |
| Cooling | Smart air cooling |
| Ingress protection rating | IP66 |
| Communication | WLAN / Fast Ethernet /RS485/ Sigen CommMod (4G/3G/2G) |
Standard Compliance
| Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2 |
|---|
