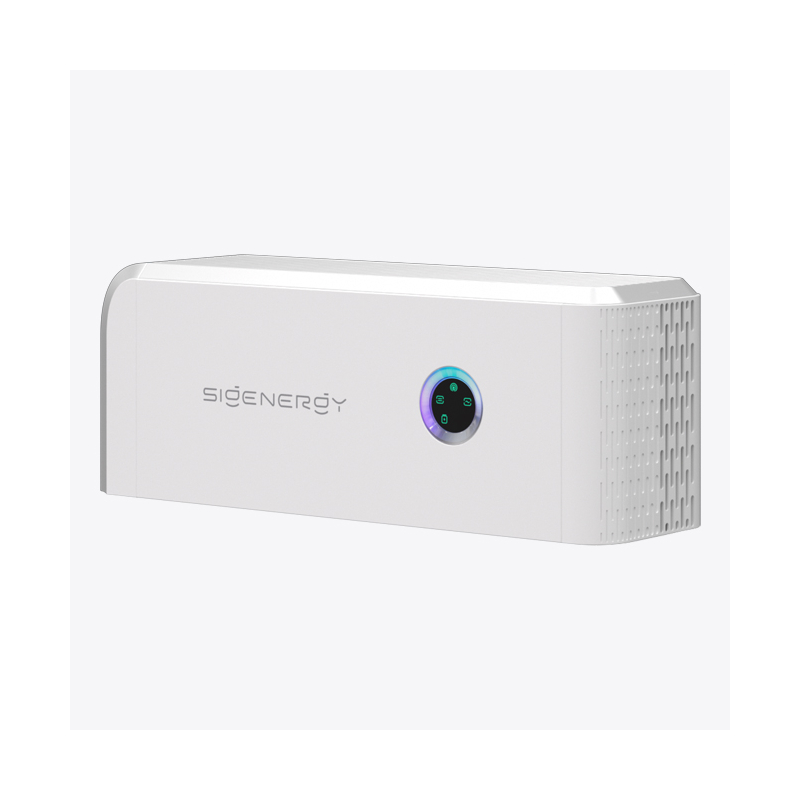

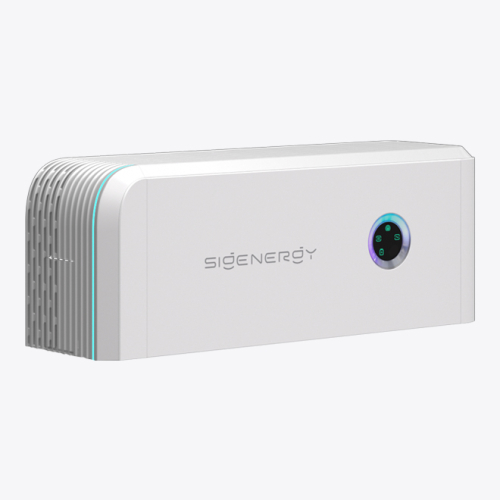

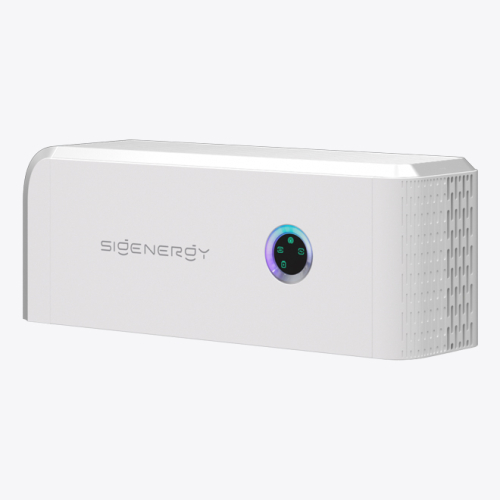

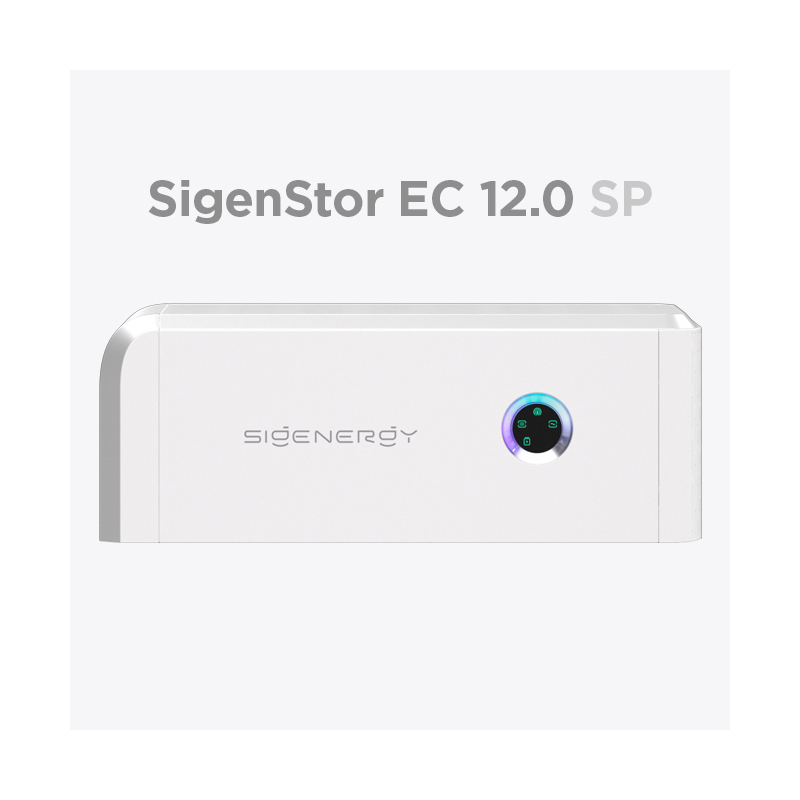

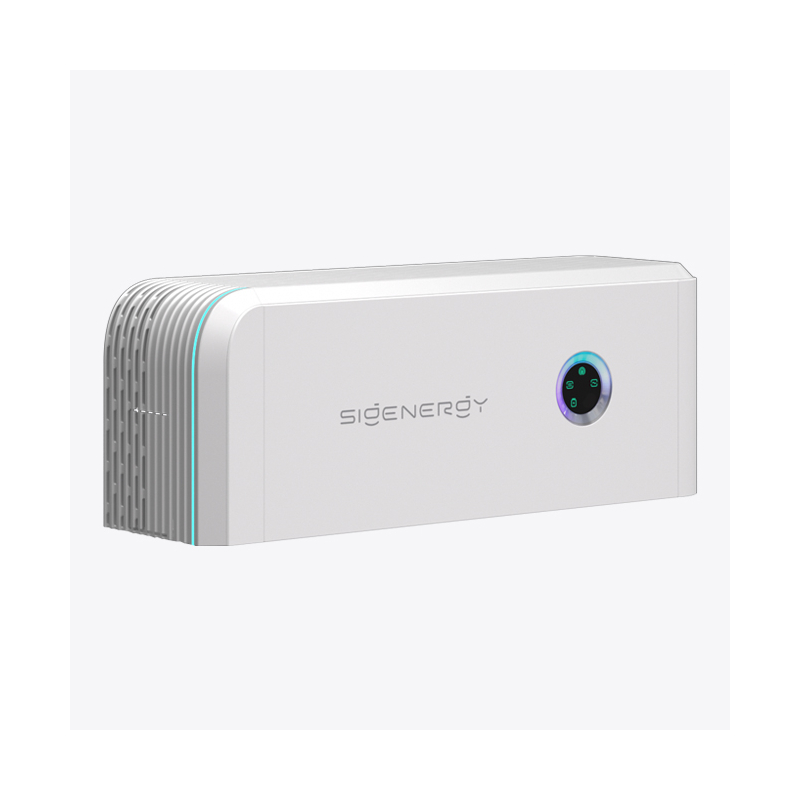

Sigen Energy Controller 12.0 kW Single Phase

Sigen Energy Controller 12.0 kW Single Phase

Login to view price.
  • EMS inside for precise control
  • on & off-grid compatibility
  • DC ground-fault protection
  • DC/AC ratio up to 2 (single phase)
  • Multi-source black start
  • IP66 protection rating
Availability:In stock
SKU SIG-EC12.0-SP

Sigen Energy Controller 12.0 kW Single Phase

The Sigen Energy Controller 12.0 kW Single Phase is a high-capacity hybrid inverter engineered for large residential and light commercial energy systems. It efficiently manages solar generation, battery storage, and grid interaction to maximize energy utilization and system performance.

As part of the SigenStor 5-in-One platform, this controller delivers advanced energy management, real-time monitoring, and dependable backup power. Its robust design makes it ideal for installations with high energy demand and future scalability.

Key Features

  • Rated Power: 12.0 kW
  • Phase Type: Single Phase
  • High-capacity hybrid inverter for demanding applications
  • Seamless integration with SigenStor battery systems
  • Real-time monitoring and smart energy optimization
  • Reliable backup power capability
  • Designed for scalability and future energy expansion

Technical Specifications

  • Product Name: Sigen Energy Controller 12.0 kW Single Phase
  • Rated Output Power: 12.0 kW
  • Phase: Single Phase
  • System Type: Hybrid (Solar + Battery + Grid)
  • Battery Compatibility: SigenStor Battery Systems
  • Monitoring: Smart monitoring and energy management system
  • Backup Capability: Supported
  • Installation: Wall-mounted or integrated system
  • Application: Large residential and commercial systems

Resources

Installation Guide Alarm List Important Notice
Product Details
Color White
Specifications
Storage temperature range -40 ~ 70°C
Relative humidity range 0% ~ 95%
Max. operation altitude 4000 m
Communication WLAN / Fast Ethernet /RS485 / Sigen CommMod (4G/3G/2G)
Standard IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62477, IEC/EN 61000-6-1, IEC/EN 61000-6-2
DC Input (from PV)
Max. DC Input Voltage (V) 600
Nominal DC input voltage 350 V
Start-up Voltage 100 V
MPPT voltage range 50 ~ 550 V
No. of MPP Trackers 4
Number of PV strings per MPPT 1
Operating temperature range -30°C ~ 60°C
Max. input current per MPPT 16 A
Max. short-circuit current per MPPT 20 A
Max. Efficiency 97.6%
Item
Dimension (w/h/d) mm 700/300/260
Weight (kg) 36
Product Details
Color White
Specifications
Storage temperature range -40 ~ 70°C
Relative humidity range 0% ~ 95%
Max. operation altitude 4000 m
Communication WLAN / Fast Ethernet /RS485 / Sigen CommMod (4G/3G/2G)
Standard IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62477, IEC/EN 61000-6-1, IEC/EN 61000-6-2
DC Input (from PV)
Max. DC Input Voltage (V) 600
Nominal DC input voltage 350 V
Start-up Voltage 100 V
MPPT voltage range 50 ~ 550 V
No. of MPP Trackers 4
Number of PV strings per MPPT 1
Operating temperature range -30°C ~ 60°C
Max. input current per MPPT 16 A
Max. short-circuit current per MPPT 20 A
Max. Efficiency 97.6%
Item
Dimension (w/h/d) mm 700/300/260
Weight (kg) 36
