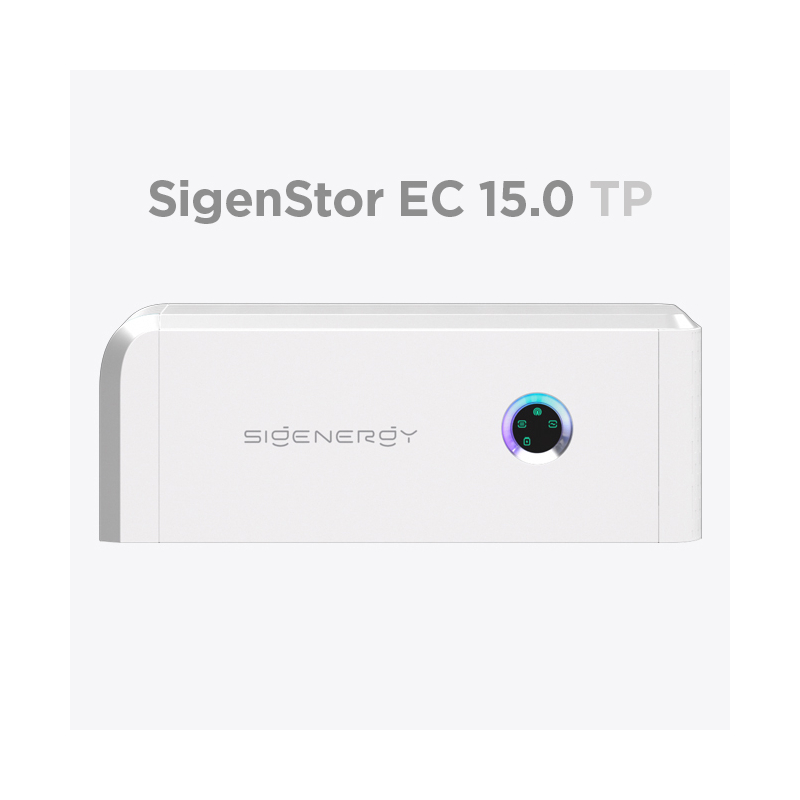

Sigen Energy Controller 15.0 kW Three Phase

Sigen Energy Controller 15.0 kW Three Phase

Login to view price.
  • EMS inside for precise control
  • DC ground-fault protection
  • Multi-source black start
  • On & off-grid compatibility
  • DC/AC ratio up to 1.6
  • IP66 system protection rating
Availability:In stock
SKU SIG-EC15.0-TP

Sigen Energy Controller 15.0 kW Three Phase

The Sigen Energy Controller 15.0 kW Three Phase is designed for larger residential and commercial systems, delivering efficient energy management across solar, battery, and grid sources with balanced three-phase output.

Key Features

  • Rated Power: 15.0 kW
  • Phase Type: Three Phase
  • Advanced hybrid inverter functionality
  • Optimized for medium to large energy demands
  • Smart monitoring and control
  • Backup power capability

Technical Specifications

  • Product Name: Sigen Energy Controller 15.0 kW Three Phase
  • Rated Output Power: 15.0 kW
  • Phase: Three Phase
  • System Type: Hybrid (Solar + Battery + Grid)
  • Battery Compatibility: SigenStor Battery Systems
  • Monitoring: Smart monitoring system
  • Backup Capability: Supported
  • Application: Commercial and large residential systems

Resources

Installation Guide Alarm List Important Notice
Product Details
Color White
Specifications
Storage temperature range -40 ~ 70°C
Relative humidity range 0% ~ 95%
Max. operation altitude 4000 m
Communication WLAN / Fast Ethernet /RS485/ Sigen CommMod (4G/3G/2G)
Standard IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2
DC Input (from PV)
Max. DC Input Voltage (V) 1100
Nominal DC input voltage 600 V
Start-up Voltage 180 V
MPPT voltage range 160-1000 V
No. of MPP Trackers 3
Number of PV strings per MPPT 1
Operating temperature range -30°C ~ 60°C
Max. input current per MPPT 16 A
Max. short-circuit current per MPPT 20 A
Max. Efficiency 98.3%
Item
Dimension (w/h/d) mm 700/300/260
Weight (kg) 36
