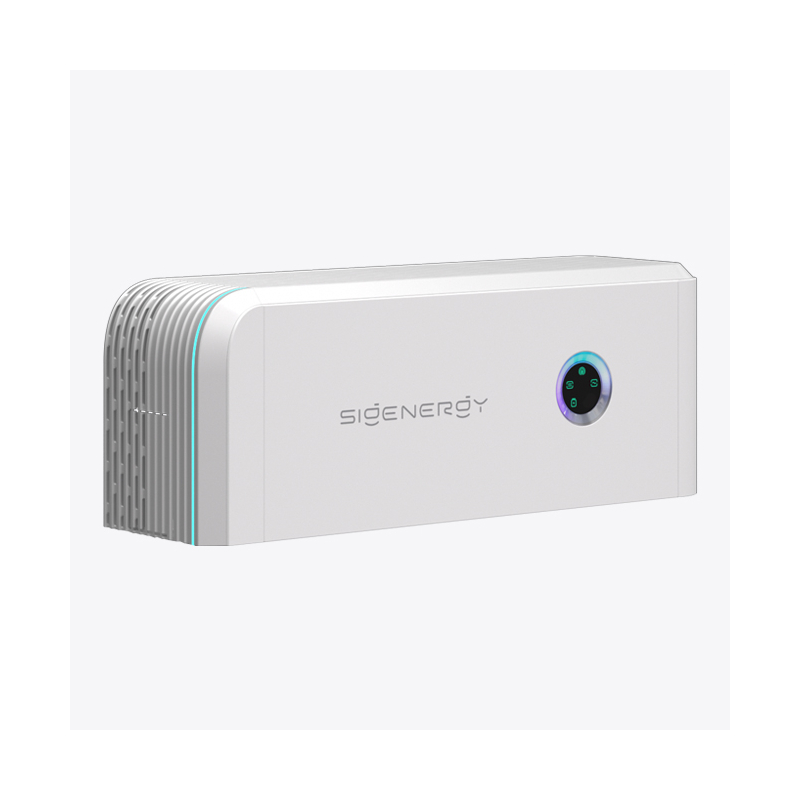

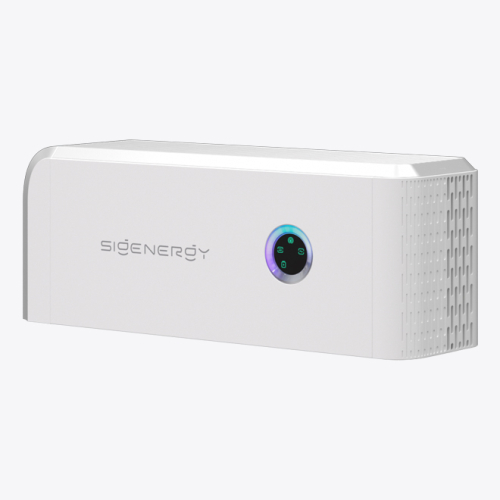

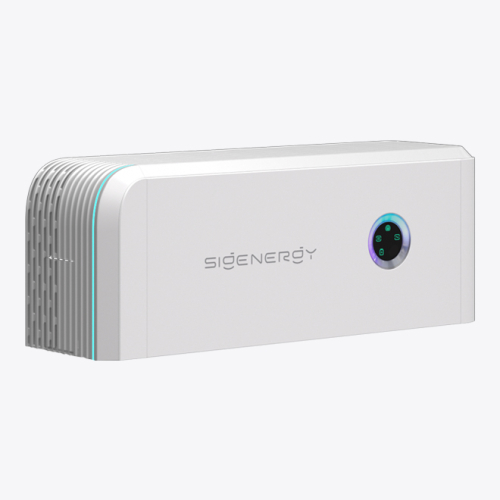

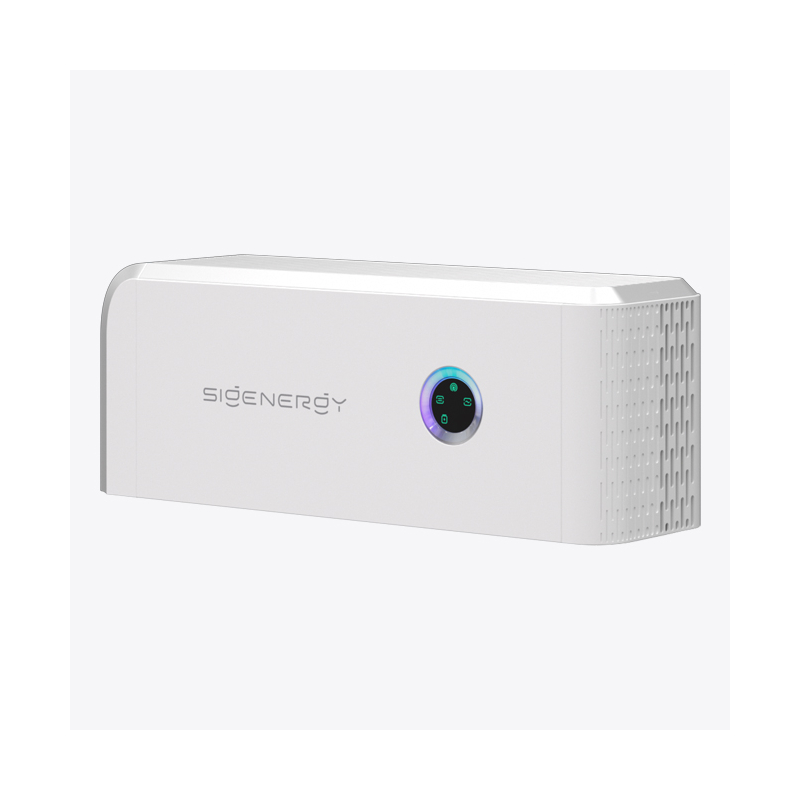

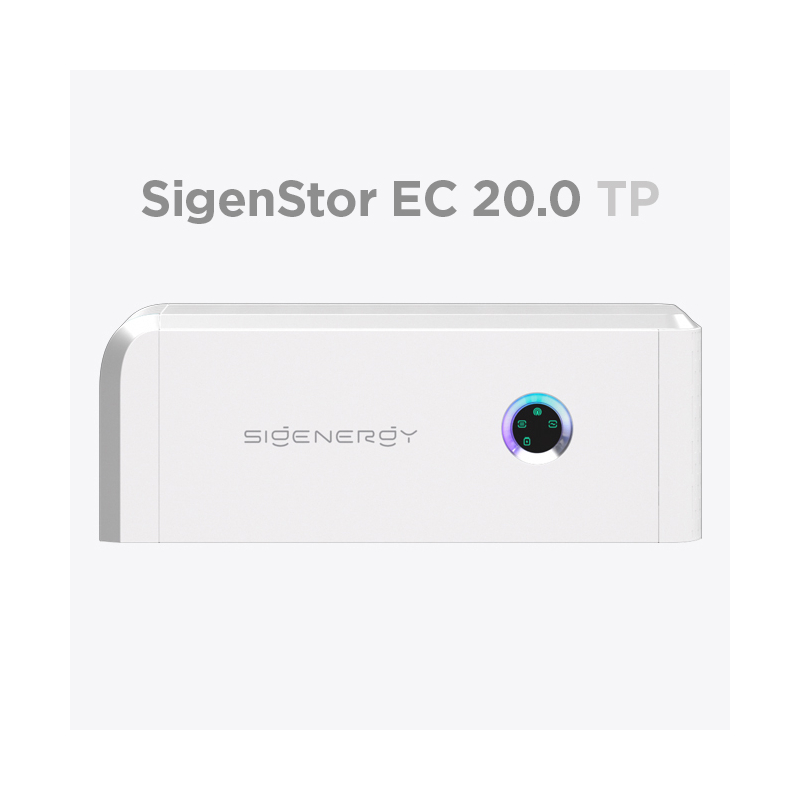

Sigen Energy Controller 20.0 kW Three Phase
Sigen Energy Controller 20.0 kW Three Phase
- EMS inside for precise control
- DC ground-fault protection
- Multi-source black start
- On & off-grid compatibility
- DC/AC ratio up to 1.6
- IP66 system protection rating
Availability:In stock
SKU SIG-EC20.0-TP
Sigen Energy Controller 20.0 kW Three Phase
The Sigen Energy Controller 20.0 kW Three Phase is designed for larger residential and commercial systems, delivering efficient energy management across solar, battery, and grid sources with balanced three-phase output.
Key Features
- Rated Power: 20.0 kW
- Phase Type: Three Phase
- Advanced hybrid inverter functionality
- Optimized for medium to large energy demands
- Smart monitoring and control
- Backup power capability
Technical Specifications
- Product Name: Sigen Energy Controller 20.0 kW Three Phase
- Rated Output Power: 20.0 kW
- Phase: Three Phase
- System Type: Hybrid (Solar + Battery + Grid)
- Battery Compatibility: SigenStor Battery Systems
- Monitoring: Smart monitoring system
- Backup Capability: Supported
- Application: Commercial and large residential systems
Resources
Installation Guide Alarm List Important Notice
| Storage temperature range | -40 - 70 |
|---|---|
| Relative humidity range | 0% ~ 95% |
| Max. operation altitude | 4,000 |
| Communication | WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G) |
| Max. DC Input Voltage (V) | 1,100 |
|---|---|
| Nominal DC input voltage | 600 |
| Start-up Voltage | 180 |
| MPPT voltage range | 160 - 1,000 |
| No. of MPP Trackers | 4 |
| Number of PV strings per MPPT | 1 |
| Operating temperature range | -30°C ~ 60°C |
| Max. input current per MPPT | 16 |
| Max. short-circuit current per MPPT | 20 |
| Max. Efficiency | 98.3 |
| Dimension (w/h/d) mm | 700 / 300 / 260 |
|---|---|
| Weight (kg) | 36 |
| Storage temperature range | -40 - 70 |
|---|---|
| Relative humidity range | 0% ~ 95% |
| Max. operation altitude | 4,000 |
| Communication | WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G) |
| Max. DC Input Voltage (V) | 1,100 |
|---|---|
| Nominal DC input voltage | 600 |
| Start-up Voltage | 180 |
| MPPT voltage range | 160 - 1,000 |
| No. of MPP Trackers | 4 |
| Number of PV strings per MPPT | 1 |
| Operating temperature range | -30°C ~ 60°C |
| Max. input current per MPPT | 16 |
| Max. short-circuit current per MPPT | 20 |
| Max. Efficiency | 98.3 |
| Dimension (w/h/d) mm | 700 / 300 / 260 |
|---|---|
| Weight (kg) | 36 |
