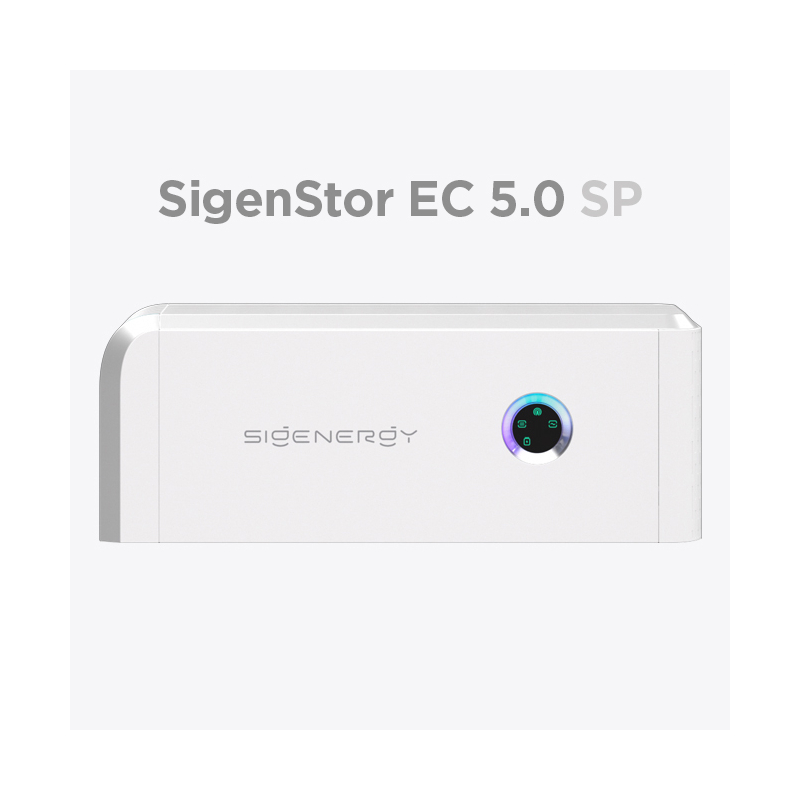

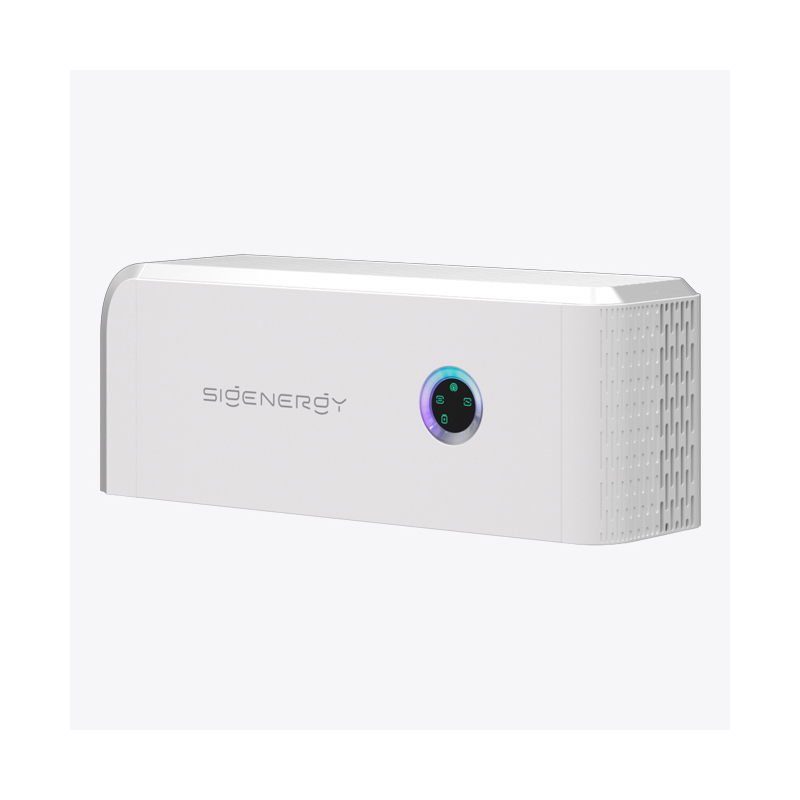

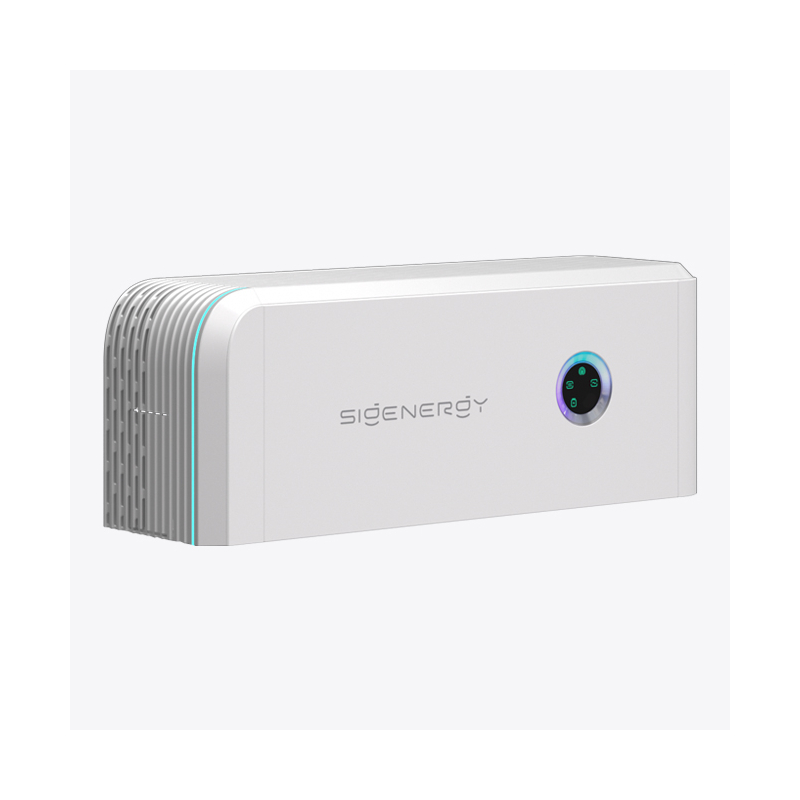

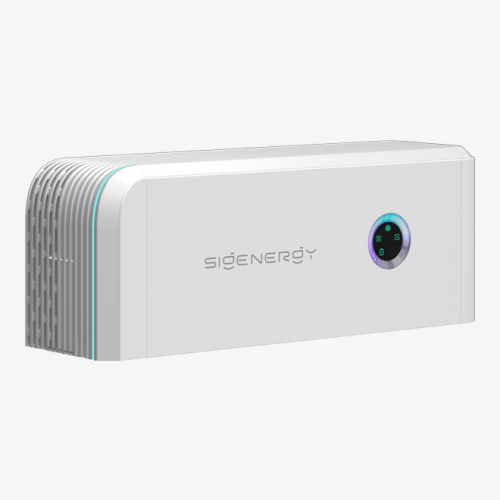

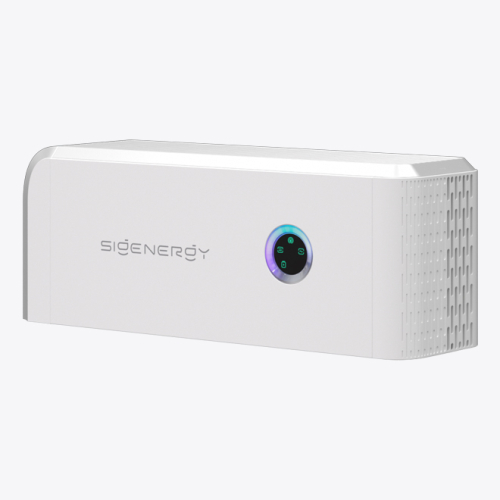

Sigen Energy Controller 5.0 kW Single Phase
Sigen Energy Controller 5.0 kW Single Phase
- EMS inside for precise control
- on & off-grid compatibility
- DC ground-fault protection
- DC/AC ratio up to 2 (single phase)
- Multi-source black start
- IP66 protection rating
Availability:In stock
SKU SIG-EC5.0-SP
Sigen Energy Controller 5.0 kW Single Phase
The Sigen Energy Controller 5.0 kW Single Phase is a smart hybrid inverter designed to efficiently manage solar generation, battery storage, and grid interaction. It delivers higher output capacity, making it ideal for homes with increased energy demand.
Integrated within the SigenStor 5-in-One system, it enables intelligent energy control, real-time monitoring, and reliable backup power, all in a compact and modern design.
Key Features
- Rated Power: 5.0 kW
- Phase Type: Single Phase
- Hybrid inverter with smart energy management
- Seamless integration with SigenStor batteries
- Real-time monitoring and optimization
- Backup power support
Resources
Installation Guide Alarm List Important Notice
| Storage temperature range | -40 ~ 70°C |
|---|---|
| Relative humidity range | 0% ~ 95% |
| Max. operation altitude | 4000 m |
| Communication | WLAN / Fast Ethernet /RS485 / Sigen CommMod (4G/3G/2G) |
| Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62477, IEC/EN 61000-6-1, IEC/EN 61000-6-2 |
| Max. DC Input Voltage (V) | 600 |
|---|---|
| Nominal DC input voltage | 350 V |
| Start-up Voltage | 100 V |
| MPPT voltage range | 50 ~ 500 V |
| No. of MPP Trackers | 2 |
| Number of PV strings per MPPT | 1 |
| Operating temperature range | -30°C ~ 60°C |
| Max. input current per MPPT | 16 A |
| Max. short-circuit current per MPPT | 20 A |
| Max. Efficiency | 98.0% |
| Dimension (w/h/d) mm | 700/300/245 |
|---|---|
| Weight (kg) | 18 |
| Storage temperature range | -40 ~ 70°C |
|---|---|
| Relative humidity range | 0% ~ 95% |
| Max. operation altitude | 4000 m |
| Communication | WLAN / Fast Ethernet /RS485 / Sigen CommMod (4G/3G/2G) |
| Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62477, IEC/EN 61000-6-1, IEC/EN 61000-6-2 |
| Max. DC Input Voltage (V) | 600 |
|---|---|
| Nominal DC input voltage | 350 V |
| Start-up Voltage | 100 V |
| MPPT voltage range | 50 ~ 500 V |
| No. of MPP Trackers | 2 |
| Number of PV strings per MPPT | 1 |
| Operating temperature range | -30°C ~ 60°C |
| Max. input current per MPPT | 16 A |
| Max. short-circuit current per MPPT | 20 A |
| Max. Efficiency | 98.0% |
| Dimension (w/h/d) mm | 700/300/245 |
|---|---|
| Weight (kg) | 18 |
