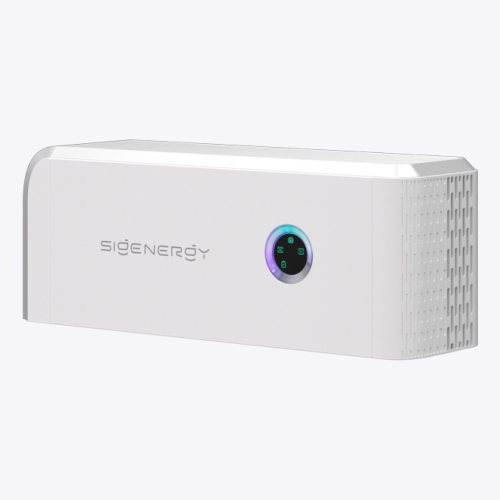

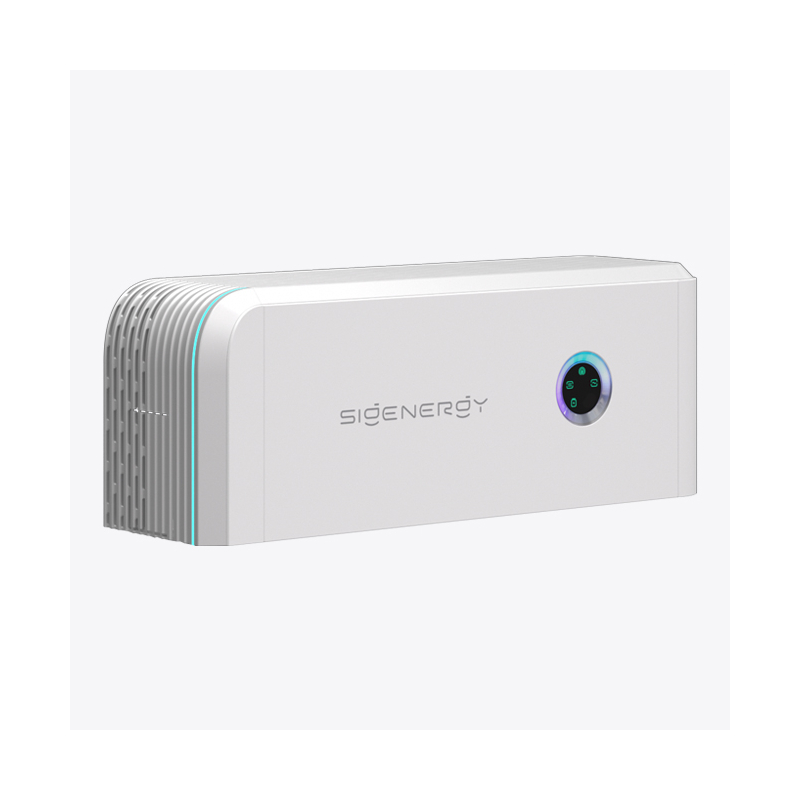

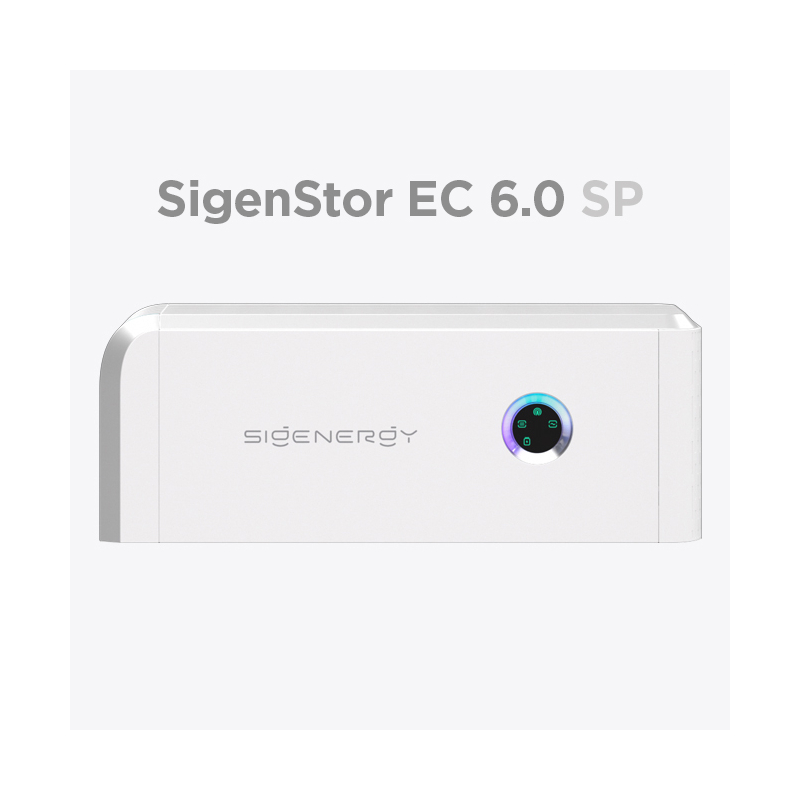

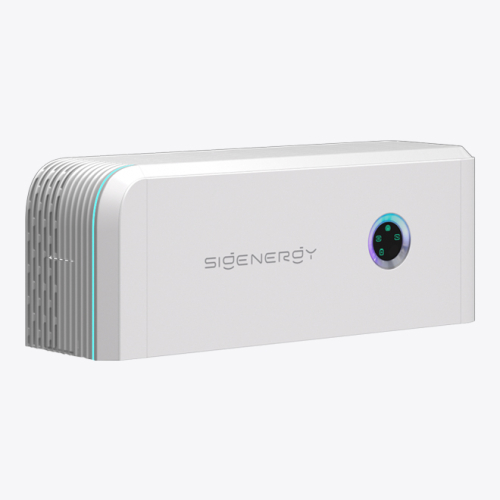

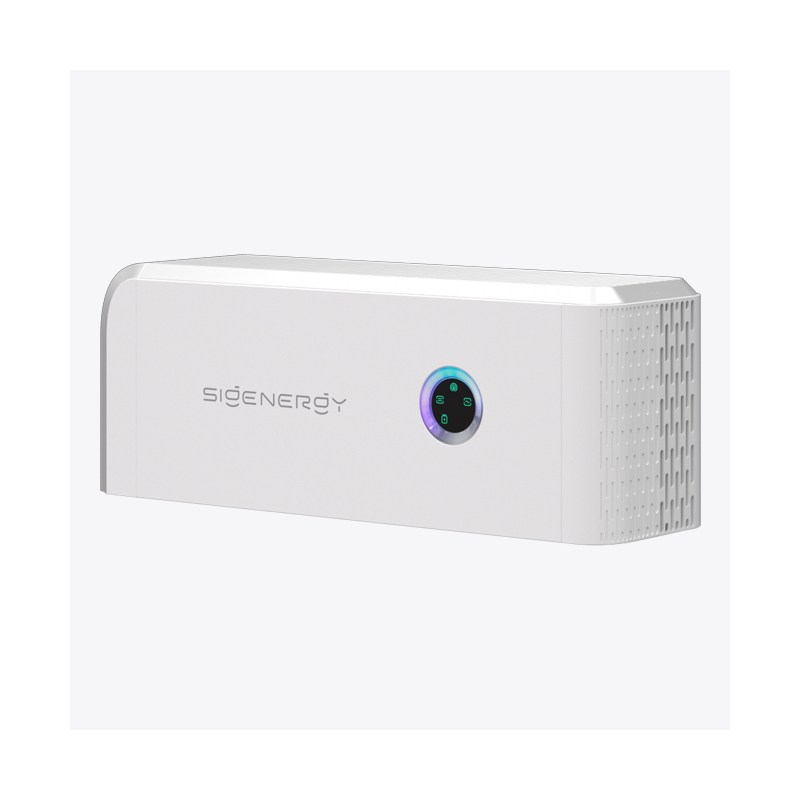

Sigen Energy Controller 6.0 kW Single Phase
Sigen Energy Controller 6.0 kW Single Phase
- EMS inside for precise control
- on & off-grid compatibility
- DC ground-fault protection
- DC/AC ratio up to 2 (single phase)
- Multi-source black start
- IP66 protection rating
Availability:In stock
SKU SIG-EC6.0-SP
Sigen Energy Controller 6.0 kW Single Phase
The Sigen Energy Controller 6.0 kW Single Phase is built for higher-demand applications, offering enhanced performance and efficient energy management across solar, battery, and grid systems.
As part of the SigenStor ecosystem, it provides intelligent control, seamless system integration, and dependable backup power for modern energy needs.
Key Features
- Rated Power: 6.0 kW
- Phase Type: Single Phase
- Advanced hybrid inverter functionality
- Optimized for higher household loads
- Smart monitoring and control
- Backup power capability
Resources
Installation Guide Alarm List Important Notice
| Color | White |
|---|
| Storage temperature range | -40 ~ 70°C |
|---|---|
| Relative humidity range | 0% ~ 95% |
| Max. operation altitude | 4000 m |
| Communication | WLAN / Fast Ethernet /RS485 / Sigen CommMod (4G/3G/2G) |
| Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62477, IEC/EN 61000-6-1, IEC/EN 61000-6-2 |
| Max. DC Input Voltage (V) | 600 |
|---|---|
| Nominal DC input voltage | 350 V |
| Start-up Voltage | 100 V |
| MPPT voltage range | 50 ~ 550 V |
| No. of MPP Trackers | 2 |
| Number of PV strings per MPPT | 1 |
| Operating temperature range | -30°C ~ 60°C |
| Max. input current per MPPT | 16 A |
| Max. short-circuit current per MPPT | 20 A |
| Max. Efficiency | 98.0% |
| Dimension (w/h/d) mm | 700/300/245 |
|---|---|
| Weight (kg) | 18 |
| Color | White |
|---|
| Storage temperature range | -40 ~ 70°C |
|---|---|
| Relative humidity range | 0% ~ 95% |
| Max. operation altitude | 4000 m |
| Communication | WLAN / Fast Ethernet /RS485 / Sigen CommMod (4G/3G/2G) |
| Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62477, IEC/EN 61000-6-1, IEC/EN 61000-6-2 |
| Max. DC Input Voltage (V) | 600 |
|---|---|
| Nominal DC input voltage | 350 V |
| Start-up Voltage | 100 V |
| MPPT voltage range | 50 ~ 550 V |
| No. of MPP Trackers | 2 |
| Number of PV strings per MPPT | 1 |
| Operating temperature range | -30°C ~ 60°C |
| Max. input current per MPPT | 16 A |
| Max. short-circuit current per MPPT | 20 A |
| Max. Efficiency | 98.0% |
| Dimension (w/h/d) mm | 700/300/245 |
|---|---|
| Weight (kg) | 18 |
