Sigen Energy Gateway HomePro Single Phase
Sigen Energy Gateway HomePro Single Phase
- Seamless switch to backup mode, worry-free energy usage
- Ready for generator, heat pump or other controllable loads
- Support both whole home backup and partial home backup
- 350 ms reverse power flow protection of grid and generator
- Uninterrupted power supply through PV+ESS/grid/generator
- Support rear wiring for more flexible installation
Availability:In stock
SKU SIG-GW-HOMEPRO-SP

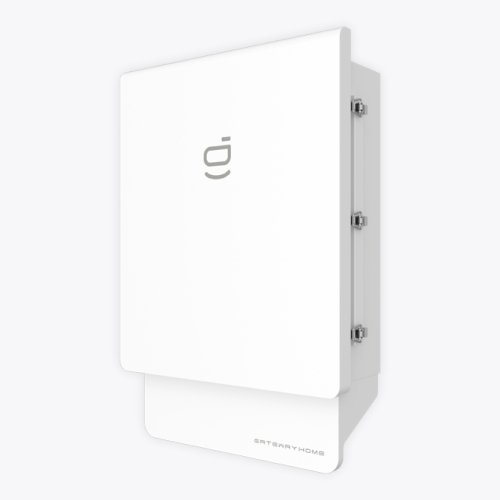

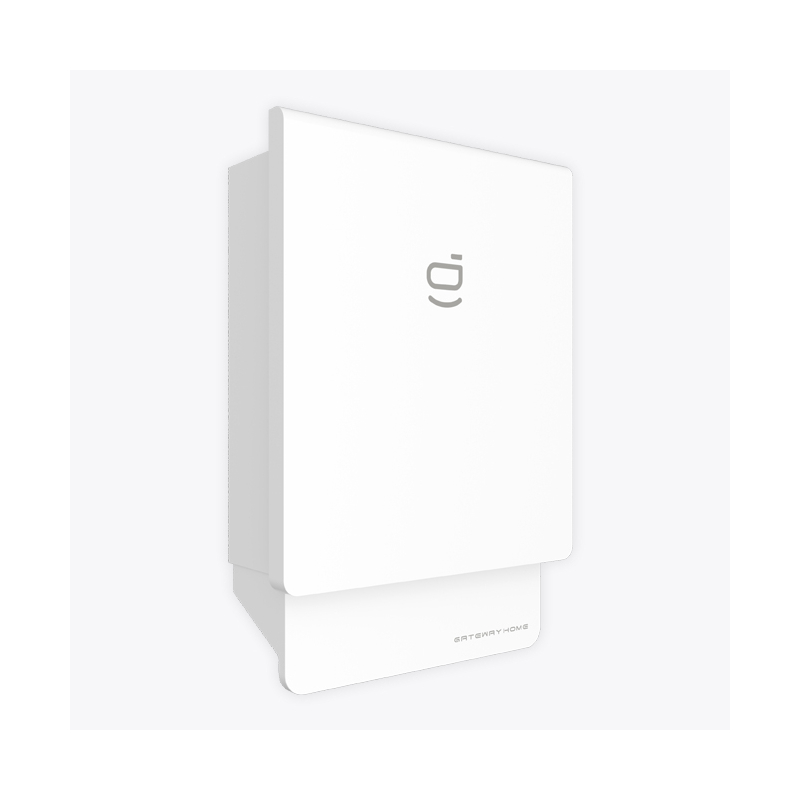

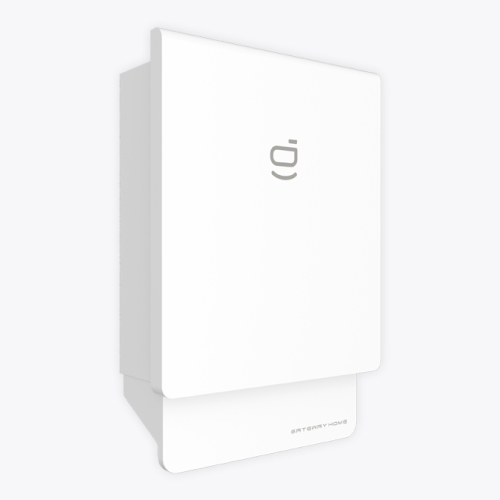

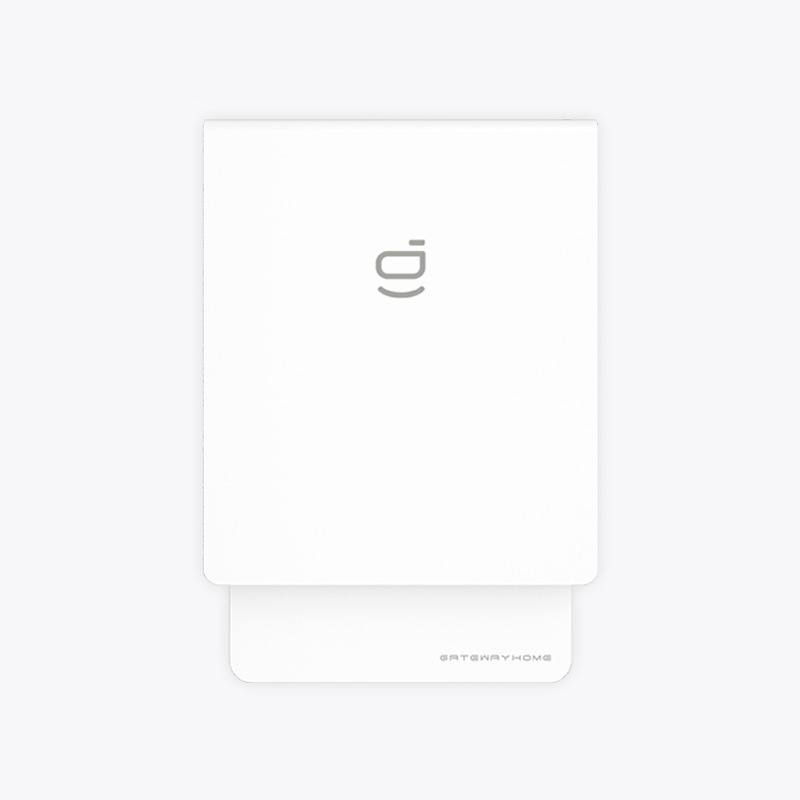

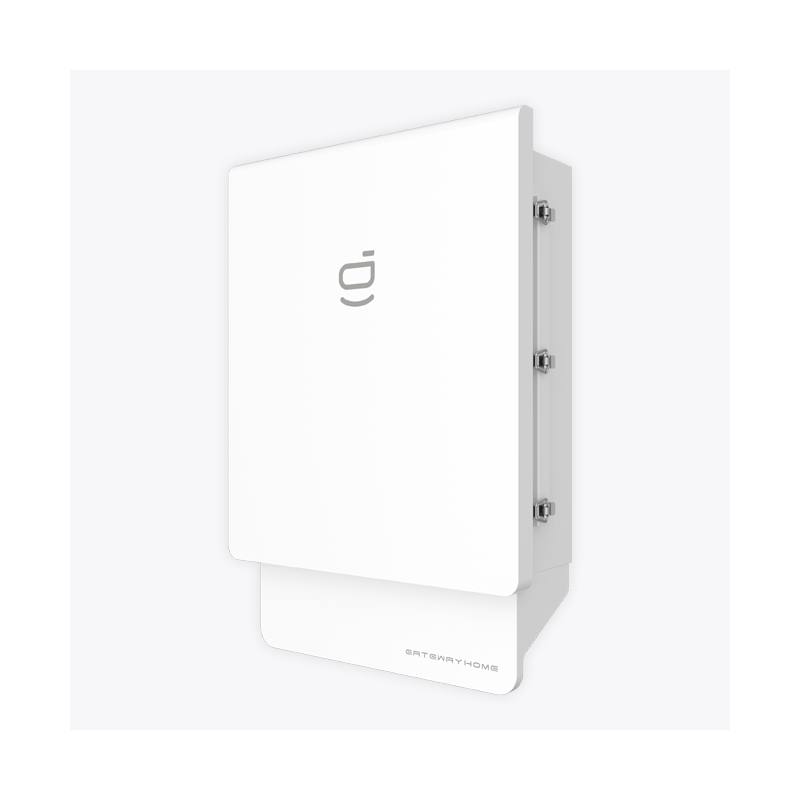

Sigen Energy Gateway HomePro Single Phase (SP)
The Sigen Energy Gateway HomePro Single Phase is an intelligent energy management and backup control unit designed for residential and small commercial applications. It acts as the central interface between the grid, solar PV system, SigenStor battery, and loads, ensuring seamless energy flow and uninterrupted power supply.
With its advanced control system, the gateway delivers 0 ms backup switching, ensuring continuous operation of critical loads during grid outages.
Key Features
- Single-phase energy gateway for residential systems
- Seamless backup transition with 0 ms interruption
- Supports PV, battery (SigenStor), grid, generator, and V2X integration
- Whole-home and partial backup capability
- Built-in bypass circuit for enhanced reliability
- Real-time monitoring and smart energy management
- Anti-backflow protection (≈350 ms response)
- Remote monitoring and control via mobile app
- Supports generator connection with 2-wire start

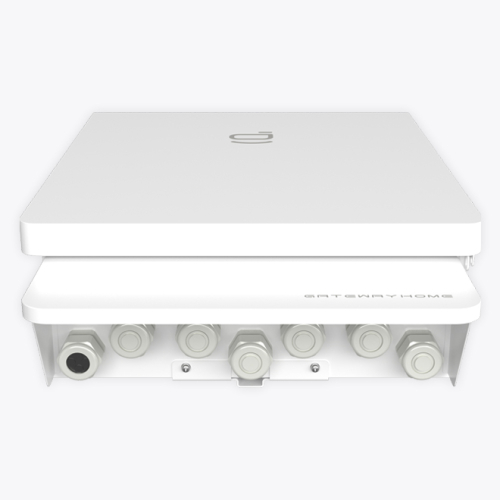

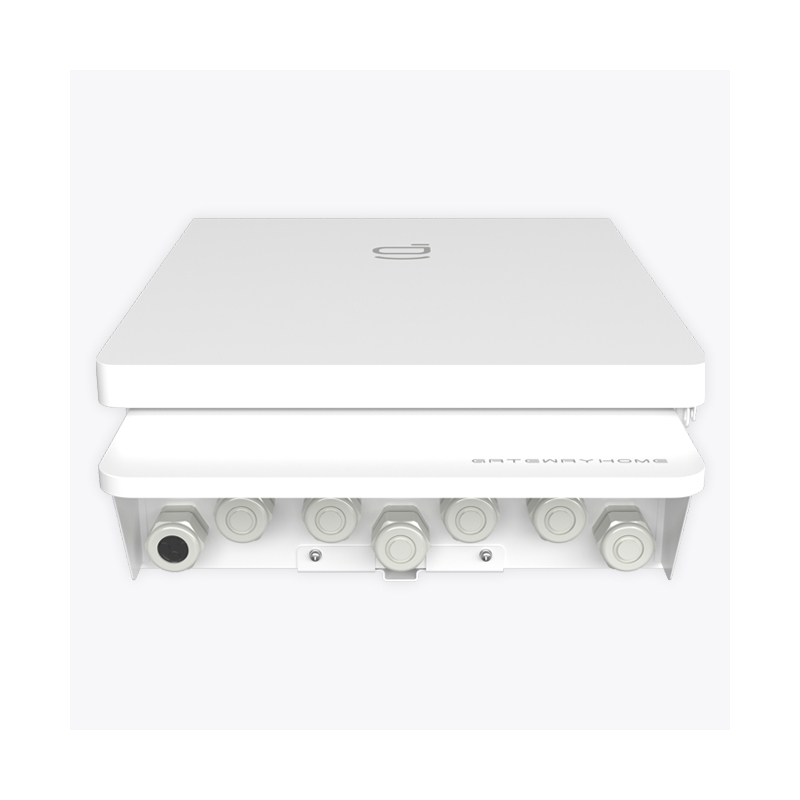

- Compact wall-mounted design with rear wiring support
System Integration
- Supports up to 2 SigenStor battery systems
- Compatible with solar PV and hybrid inverter systems
- Integrates with diesel generators for extended backup
- Works with smart loads and home energy management systems
Applications
- Residential homes
- Small commercial buildings
- Solar + battery backup systems
- Off-grid and hybrid energy systems
Key Benefits
- Uninterrupted power supply during outages
- Optimized energy usage and reduced electricity costs
- Flexible integration with multiple energy sources
- Reliable and safe operation with built-in protection
- Easy installation with compact and integrated design
| Storage temperature range | -40 ~ 70°C |
|---|---|
| Operating temperature range | -30 ~ 55°C |
| Relative humidity range | 0% ~ 100% |
| Max. operation altitude | 4000m |
| Communication | Fast Ethernet , RS485, dry contact |
| Dimension (w/h/d) mm | 450 / 570 / 197 |
|---|---|
| Weight (kg) | 22.5 |
| Storage temperature range | -40 ~ 70°C |
|---|---|
| Operating temperature range | -30 ~ 55°C |
| Relative humidity range | 0% ~ 100% |
| Max. operation altitude | 4000m |
| Communication | Fast Ethernet , RS485, dry contact |
| Dimension (w/h/d) mm | 450 / 570 / 197 |
|---|---|
| Weight (kg) | 22.5 |
