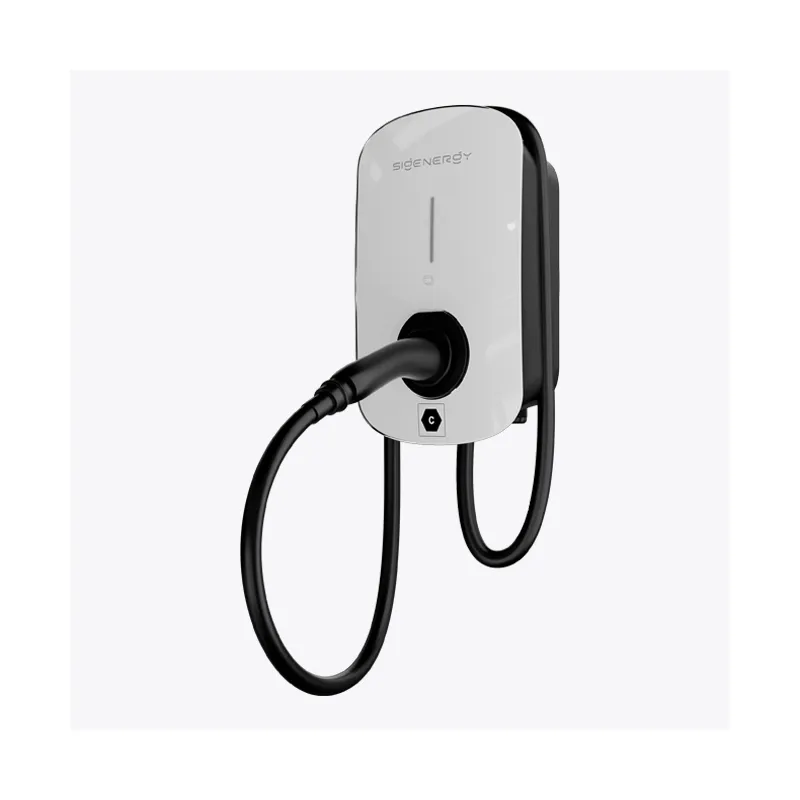

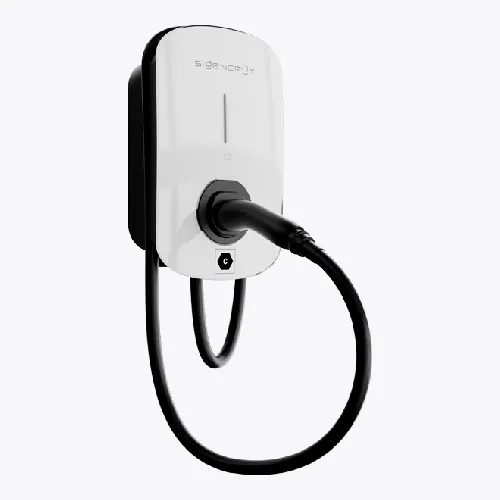

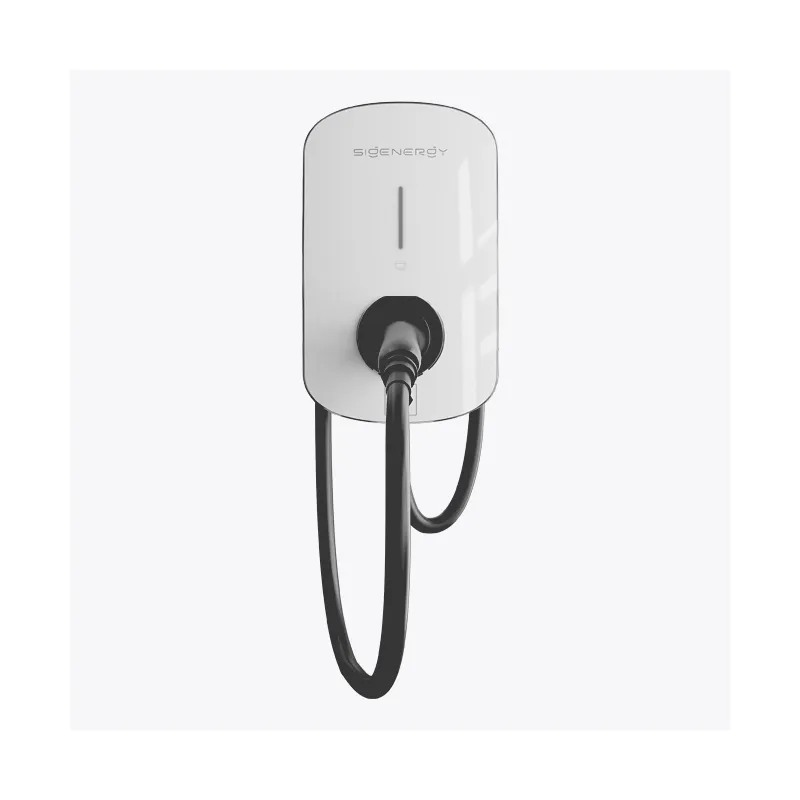

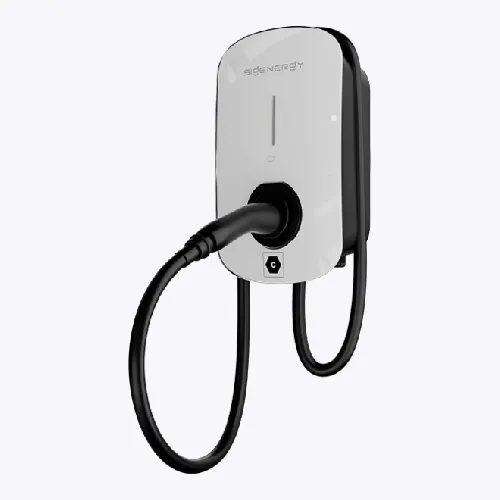

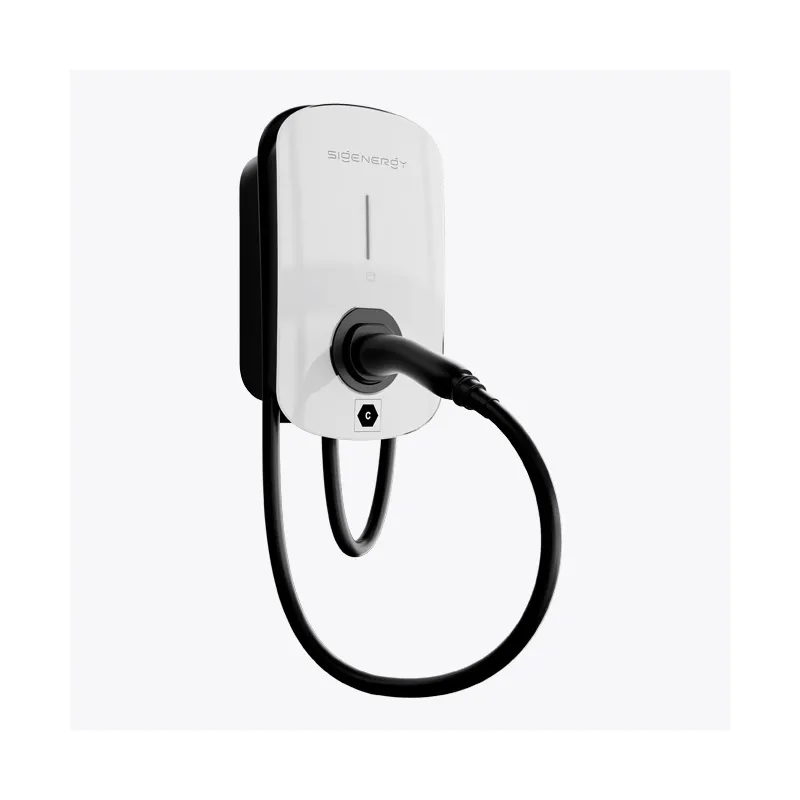

Sigen EV AC 7kW Charger
Sigen EV AC 7kW Charger
- Green power charging with Sigenergy home energy solution
- Data tracking & scheduled charging on mySigen App
- Dynamic load management to prevent overload, user-friendly charging*
- Easy installation with less steps and top/bottom entry option
- Integrated residual current failure protection reduces installation costs
- IP65 and wall/pole-mounted installation provide high adaptability
- 4G Communication
- 5m Cable Type 2 White
Availability:In stock
SKU SIG-EVAC7-4GT2-WH
BrandSigenergy
Sigen EV AC 7kW Charger
The Sigen EV AC Charger empowers you to save money by leveraging solar energy for your car's charging needs instead of relying solely on grid power. Intelligent charging options give you the choice to charge your EV with low utility rates or even tap into the power from your home energy storage system.
The Sigen EV AC Charger empowers you to save money by leveraging solar energy for your car's charging needs instead of relying solely on grid power. Intelligent charging options give you the choice to charge your EV with low utility rates or even tap into the power from your home energy storage system.
AC Input & Output
| Nominal charging power | 7 |
|---|---|
| Nominal output voltage | 1P/N/PE, 220~240 |
| Output current range | 6-32 |
| Nominal AC frequency | 50/60 |
| Vehicle connection | Type 2 connector /Type 2 socket with shutter |
| AC input cable width range | 2.5~6.0 |
Protection
| Over / Under voltage protection | Supported |
|---|---|
| Overload protection | Supported |
| Over temperature protection | Supported |
General Data
| Dimension (w/h/d) mm | 234/384/126 |
|---|---|
| Weight (kg) | 4.50 |
| Cooling | Natural convection |
| Ingress protection rating | IP65 |
