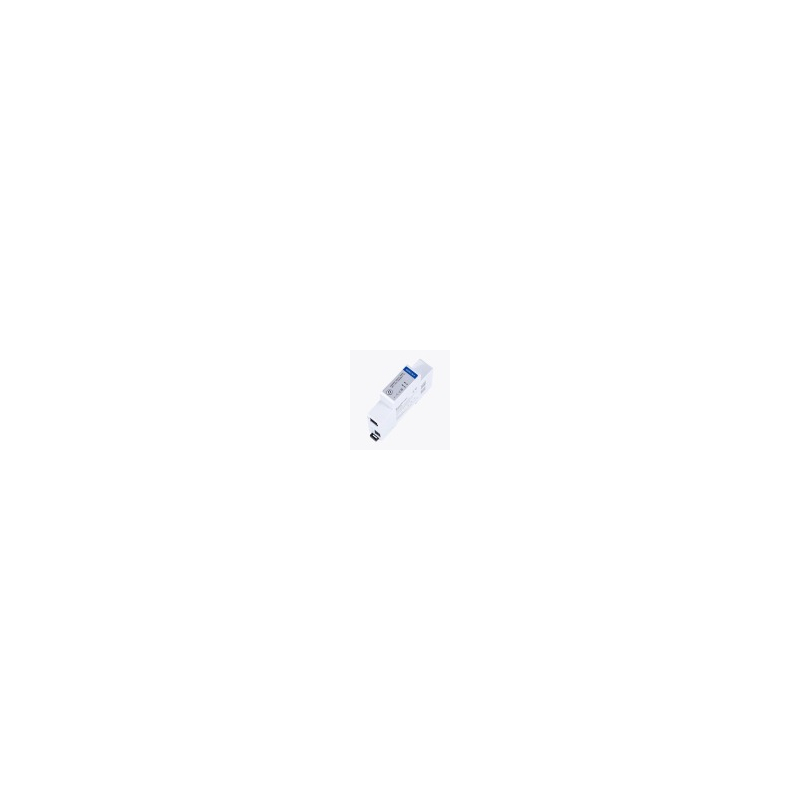

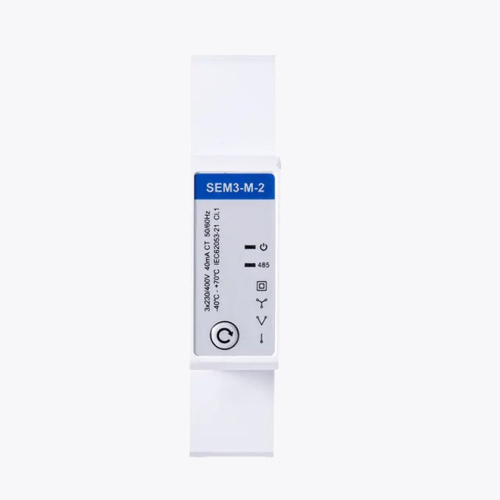

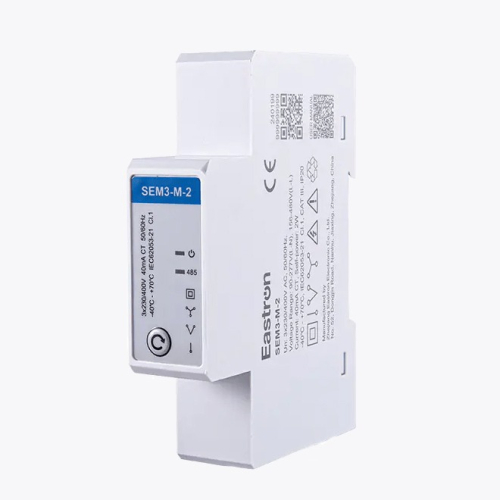

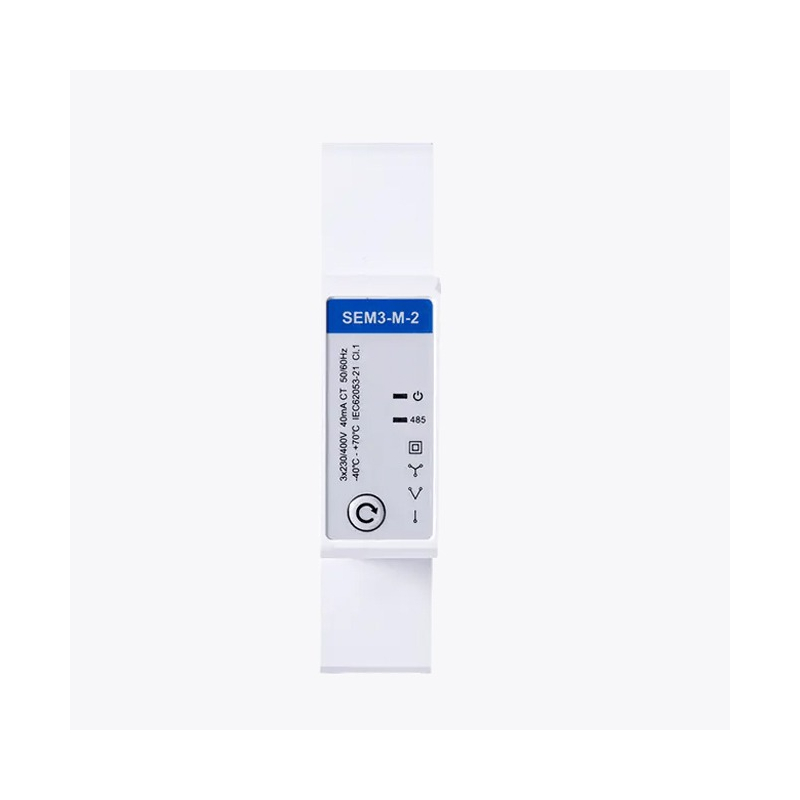

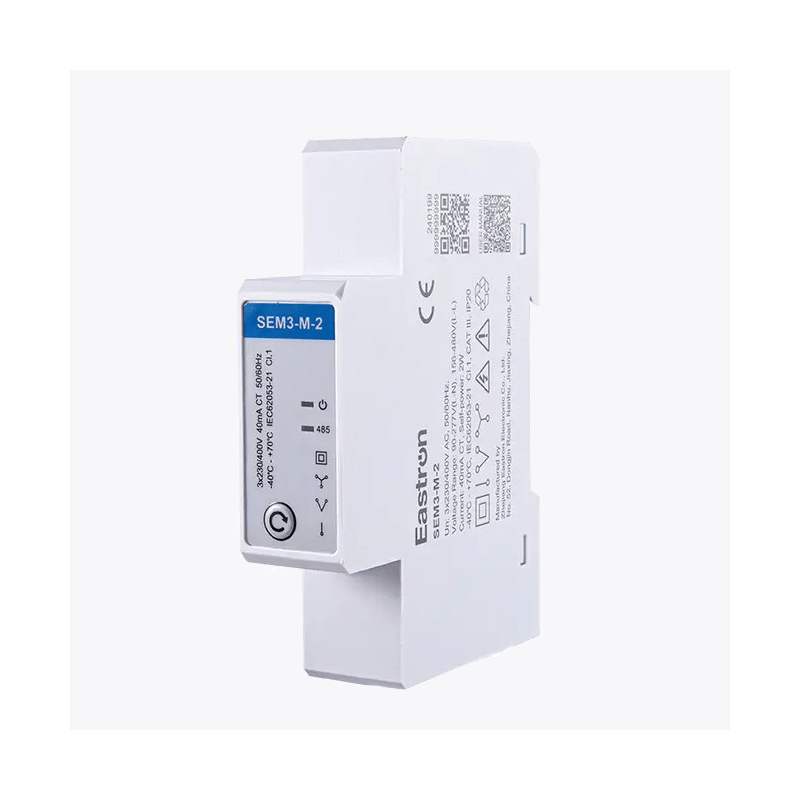

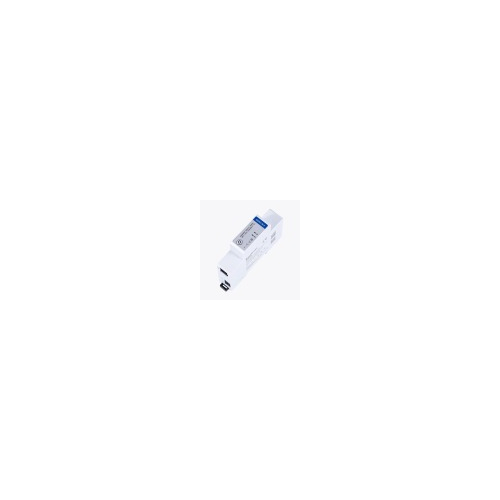

Sigen Power Sensor Three Phase External CT 100 A DH
Sigen Power Sensor Three Phase External CT 100 A DH
- 1% high-accuracy power detection for precise control
- LCD real-time info display, easy to operate and check
- Integrates smoothly with Sigenergy devices, no need for setup
- Top class 100 A direct connection in power sensor with built-in CT
- Support export/import limitations and ready for AI evolving
- 100 ms data refresh rate, instantaneous data feed
Availability:In stock
SKU SIG-SEN-TP-CT100-DH
BrandSigenergy
Sigen Power Sensor Three Phase External CT 100A DH
The Sigen Power Sensor Three Phase External CT 100A DH is a smart energy monitoring device designed to measure and track electricity flow in three-phase systems. It provides real-time insight into how much power is being consumed or exported, making it especially useful in solar and battery installations.

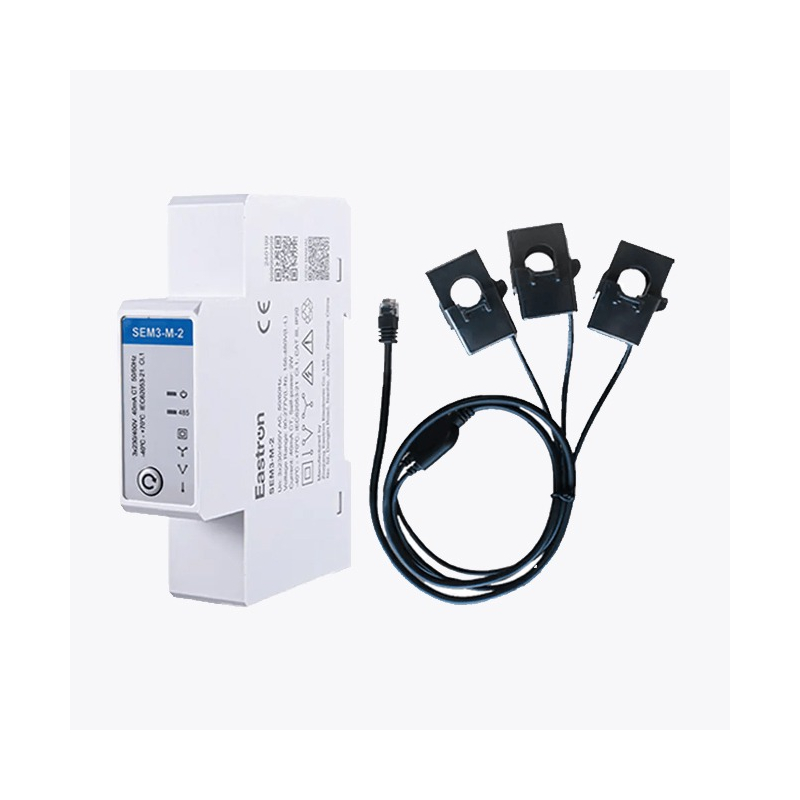

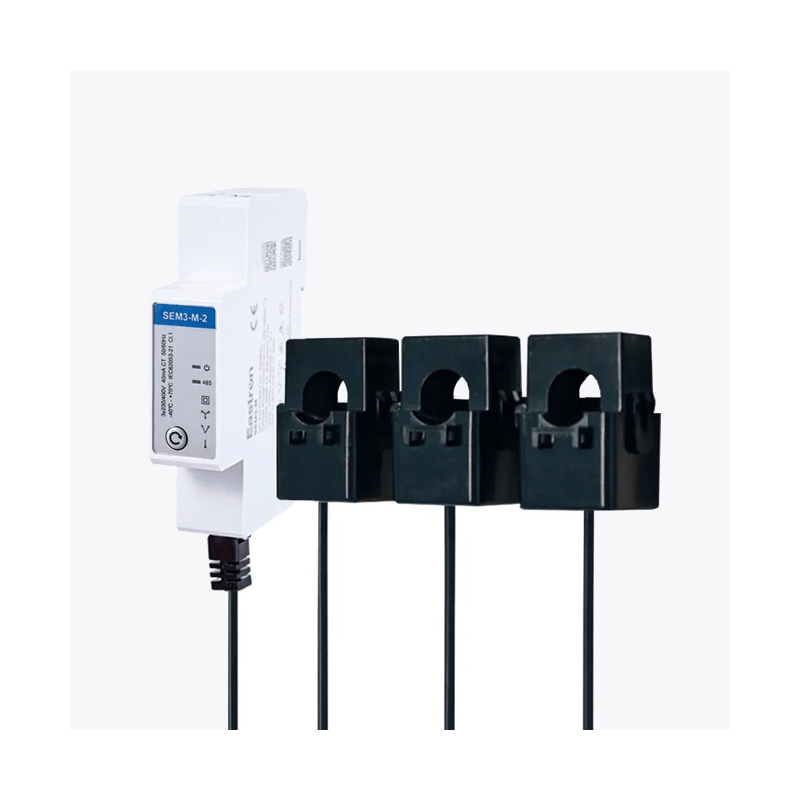

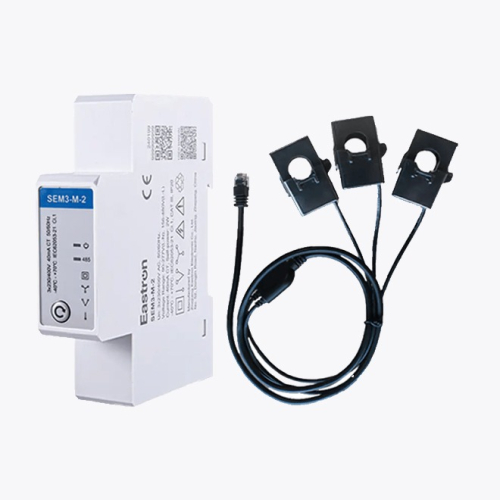

It works by using external current transformers (CT clamps) to detect the flow of electricity on each phase, then processes and communicates this data to connected energy systems. This allows users to monitor usage, optimize energy consumption, and improve overall system efficiency.
The sensor is built to integrate seamlessly with Sigenergy systems, enabling advanced energy management features such as intelligent control of power flow, import/export limitation, and automated optimization. It plays a key role in ensuring that energy systems—whether residential or commercial—operate efficiently, reliably, and in a cost-effective way.
Technical Specifications
| Grid connection type | 3P3W/3P4W |
|---|---|
| Nominal AC frequency | 50 / 60 |
| Rated input voltage | 156 ~ 480 |
| Voltage accuracy | ±0.5% |
| Current accuracy | ±0.5% |
| Power accuracy | ±1% |
| Frequency accuracy | ±0.2% |
Communication
| Interface | RS485 |
|---|---|
| Baud rate | 9600bps |
| Protocol | Modbus RTU |
General Data
| Dimension (w/h/d) mm | 19/94/5/68.5 |
|---|---|
| Weight (kg) | 0.50 |
| Operating temperature range | -25 ~ +60°C |
| Storage temperature range | -40°C ~ +70°C |
| Relative humidity range | 0%~90% |
| Cooling | Natural cooling (passive, no fan) |
| Ingress protection rating | IP20 |
Standard Compliance
| Standard | EN 61010-1:2010, EN 61010-2-030:2010 |
|---|
