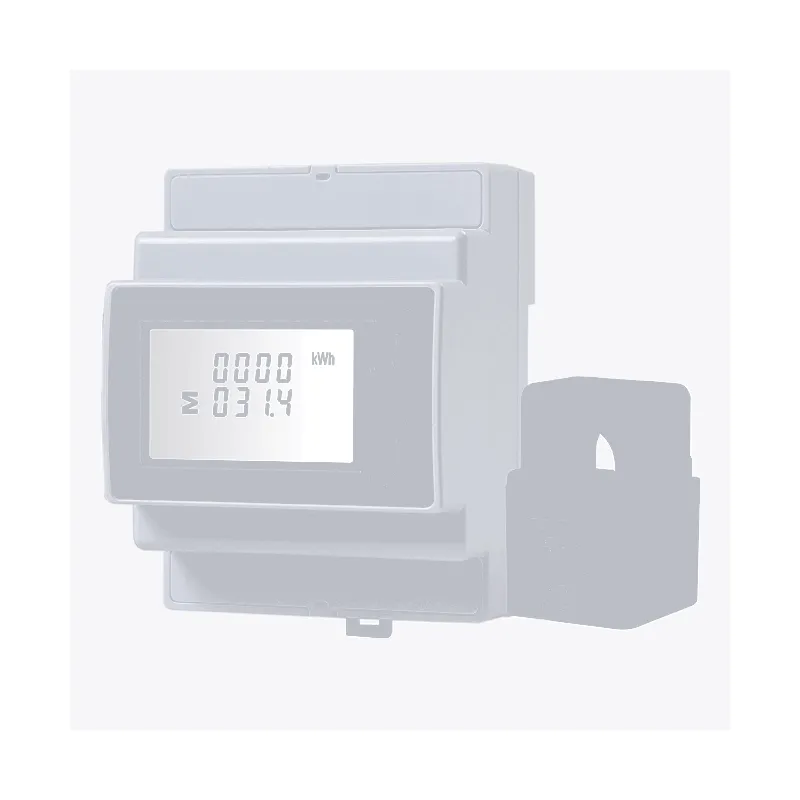

Sigen Power Sensor Three Phase External CT 600 A DH
Sigen Power Sensor Three Phase External CT 600 A DH
- 1% high-accuracy power detection for precise control
- LCD real-time info display, easy to operate and check
- Integrates smoothly with Sigenergy devices, no need for setup
- Top class 100 A direct connection in Power Sensor with built-in CT
- Support export/import limitations and ready for AI evolving
- 100 ms data refresh rate, instantaneous data feed
Availability:In stock
SKU SIG-SEN-TP-CT600-DH
Sigen Power Sensor Three Phase External CT 600A DH
The Sigen Power Sensor Three Phase External CT 600A DH is a high-precision energy monitoring device designed for large-scale three-phase electrical systems. It provides real-time measurement of power consumption, generation, and grid import/export, enabling advanced energy management, optimization, and control.
Equipped with external split-core current transformers (CTs), it allows for safe and easy installation without disconnecting existing wiring. This makes it ideal for commercial, industrial, and high-capacity energy storage and solar applications.
Key Features
- Three-Phase Energy Monitoring: Accurate real-time measurement of voltage, current, and power across all phases.
- 600A External Split-Core CTs: Designed for high-current applications in commercial and industrial systems.
- Import & Export Tracking: Monitors bidirectional energy flow for improved grid interaction and control.
- High Accuracy Measurement: Ensures reliable data for advanced energy optimization and system management.
- Fast Data Refresh: Near real-time monitoring for responsive energy control and analysis.
- Seamless Integration: Supports RS485 (Modbus RTU) communication and integrates with Sigenergy inverters, gateways, and energy systems.
- DIN Rail Installation: Compact design for easy mounting inside electrical distribution panels.
Smart Energy Monitoring for Large-Scale Systems
The Sigen Power Sensor 600A DH plays a critical role in advanced energy systems by delivering precise, real-time insights into energy usage and flow. It supports intelligent energy strategies such as load balancing, peak shaving, and export limitation.
Designed for high-demand environments, it is an essential component for optimizing performance, efficiency, and cost savings in modern solar and storage installations.
| Grid connection type | 3P3W/3P4W |
|---|---|
| Operating temperature range | -40°C ~ +70°C |
| Storage temperature range | -25 ~ 60 |
| Relative humidity range | 0%~90% |
| Standard | EN 61010-1:2010, EN 61010-2-030:2010 |
| Rated input voltage | 173 ~ 480 |
| Frequency accuracy | 0.2% |
| Dimension (w/h/d) mm | 72 / 94.5 / 65 |
|---|---|
| Weight (kg) | 0.23 |
| Grid connection type | 3P3W/3P4W |
|---|---|
| Operating temperature range | -40°C ~ +70°C |
| Storage temperature range | -25 ~ 60 |
| Relative humidity range | 0%~90% |
| Standard | EN 61010-1:2010, EN 61010-2-030:2010 |
| Rated input voltage | 173 ~ 480 |
| Frequency accuracy | 0.2% |
| Dimension (w/h/d) mm | 72 / 94.5 / 65 |
|---|---|
| Weight (kg) | 0.23 |
