Suntech 445W Half-Cell N-Type TOPCon TRANSPARENT BLACK BIFACIAL Module
Suntech 445W Half-Cell N-Type TOPCon TRANSPARENT BLACK BIFACIAL Module
High module conversion efficiency
Module efficiency up to 22.8% achieved through advanced cell technology and manufacturing process
Multi busbar technology
Superior optical utilization and current collection capability, effectively improving product power and reliability
Excellent low light performance
More power output in low light conditions such as cloudy days, mornings and evenings
Superior load-bearing capability
Module certified to withstand 5400 Pa front side max static test load and 2400 Pa rear side max static test load.*
Availability:In stock
SKU STP445S-H48-Nth+

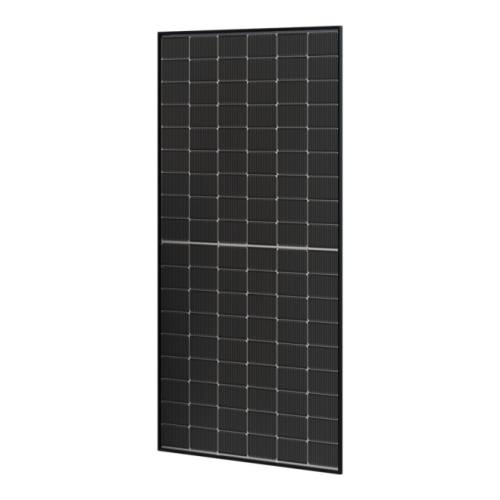

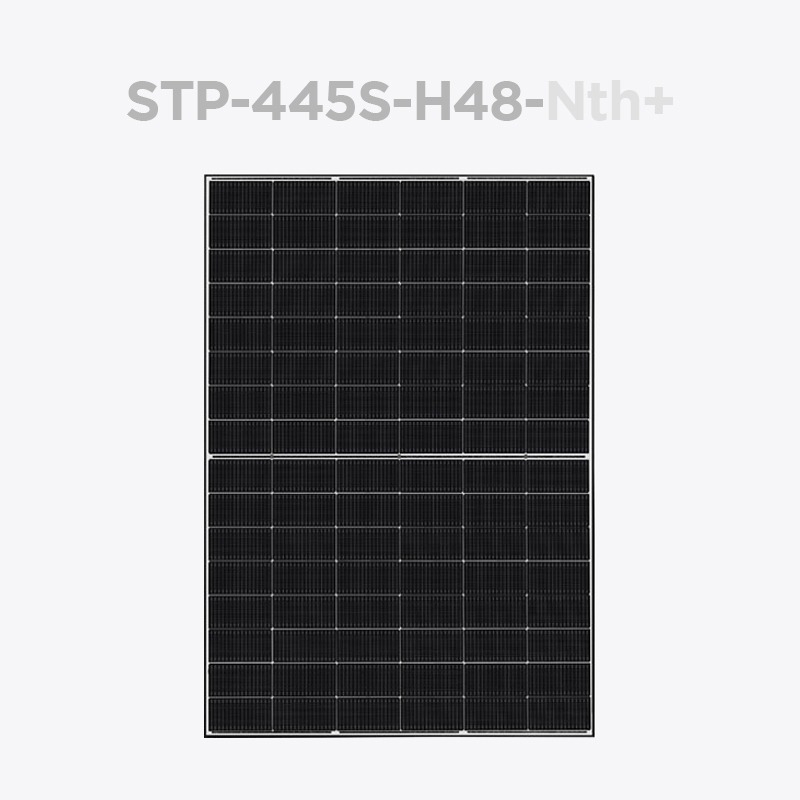

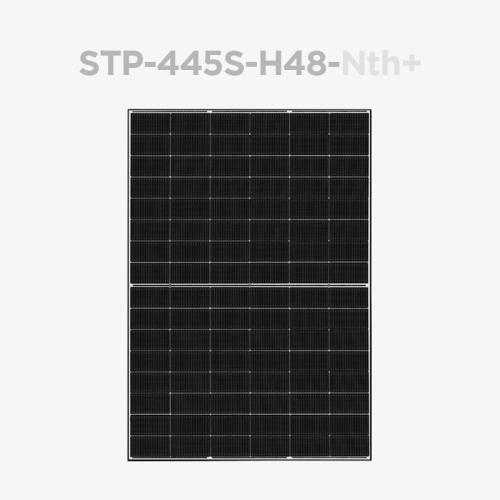

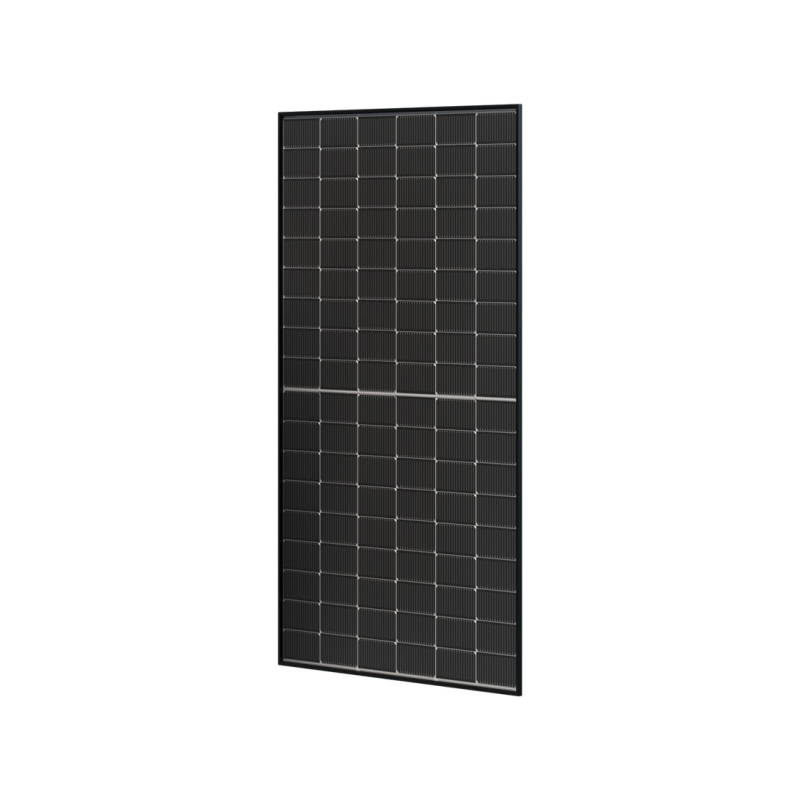

Suntech 445W Half-Cell N-Type TOPCon Transparent Black Bifacial Module
The Suntech 445W Half-Cell N-Type TOPCon Transparent Black Bifacial Module is designed to deliver reliable performance, high efficiency, and refined aesthetics. Powered by advanced N-Type TOPCon technology and half-cell configuration, this module ensures improved energy yield, reduced power loss, and enhanced durability.

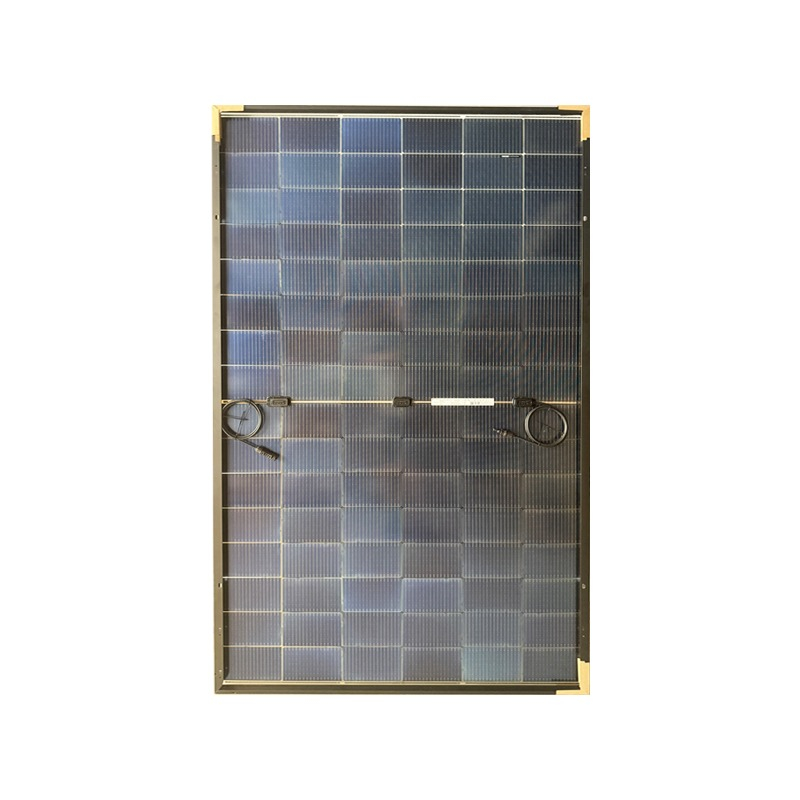

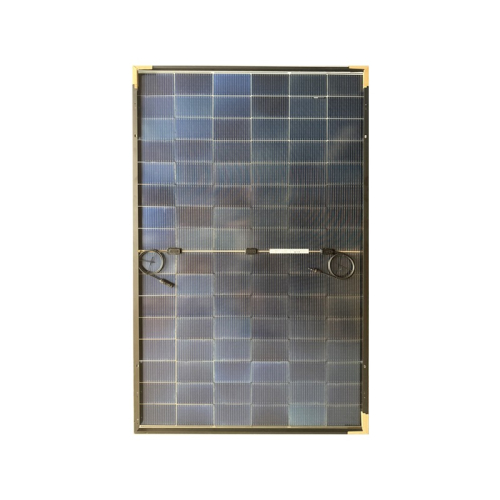

Its bifacial architecture captures sunlight from both the front and rear sides, increasing overall energy generation. The transparent black design provides a sleek, modern appearance, making it an excellent choice for installations that prioritize both efficiency and visual appeal.
Key Features
- Power Output: 445W
- Cell Technology: N-Type TOPCon
- Cell Design: Half-Cell
- Type: Bifacial with transparent backsheet
- Design: Transparent Black finish
- Higher efficiency with low degradation rate
- Enhanced performance in low-light environments
- Strong resistance to heat, moisture, and mechanical stress
Applications
- Residential rooftop systems
- Commercial and industrial solar installations
- Carports, canopies, and architectural projects
- Utility-scale solar developments
Downloads
Mechanical Characteristics
| Max Power at STC (pMax) | 445W |
|---|---|
| Operating Voltage (Vmp) | 30.21V |
| Operating Current (Imp) | 15.06 |
| Open circuit voltage (Voc) | 35.57 |
| Short Circuit Current (Isc) | 16.00 |
| Cell type | N-Type Monocrystalline silicon |
| Number of Cells | 96 (6 × 16) |
| Module Frame | Anodized aluminium alloy |
| Efficiency | 22.8% |
| Connectors | Wuxi Suntech STP-XC4-4 (Default)/ Staubli PV-KST4-EVO2A/xy (Optional) |
| Operating temperature range | -40°C ~ +70°C |

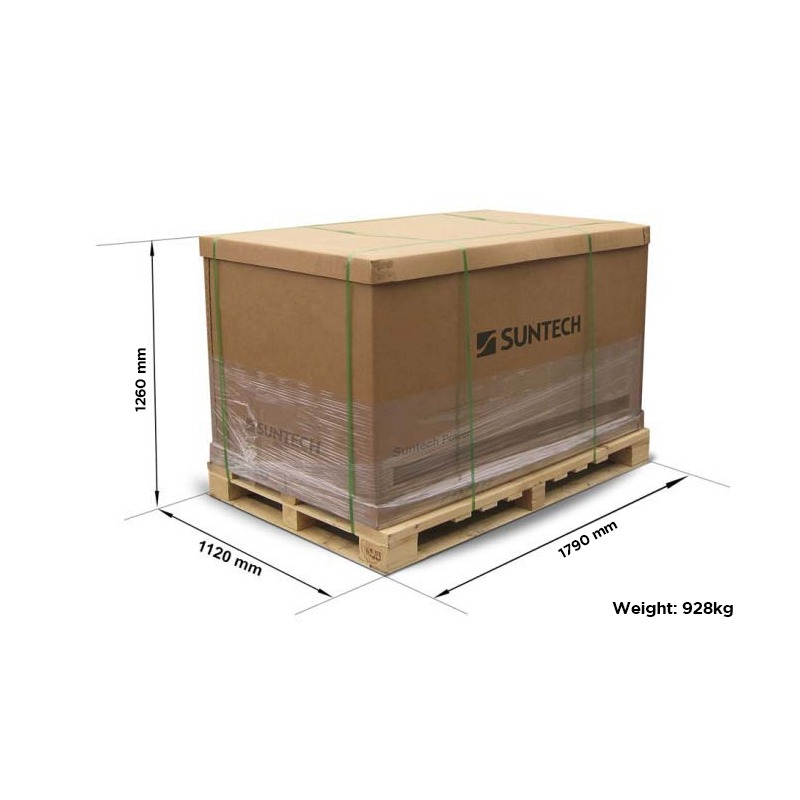

Shipping Specifications
| Pieces per pallet | 36 |
|---|---|
| Solar Pallet Cubic | 3 |
| Pallet Length (m) | 1255 |
| Pallet Width (m) | 1120 |
| Pallet Height (m) | 1796 |
| Panel Depth (mm) | 30 |
| Panel Width (mm) | 1134 |
| Panel Height (mm) | 1762 |
| Weight (kg) | 21.50 |
