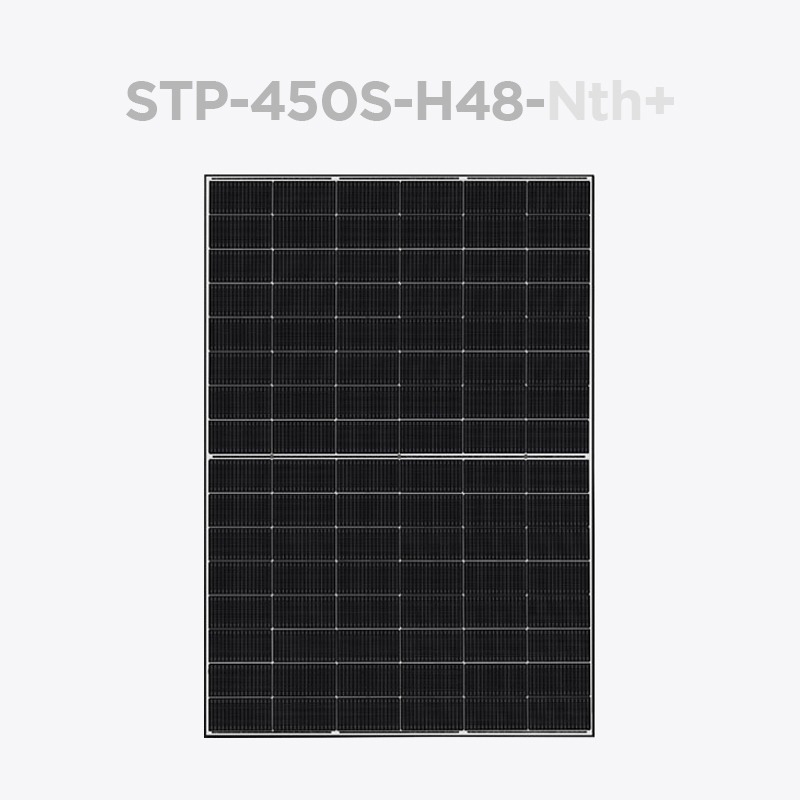

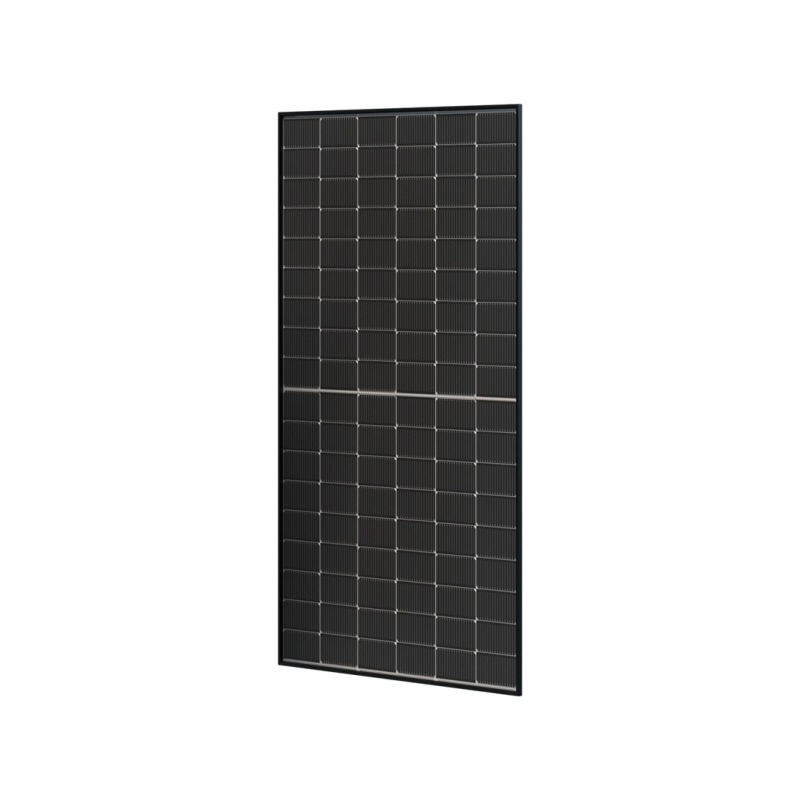

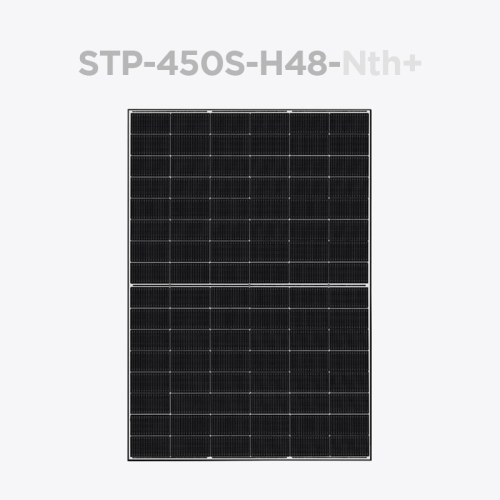

Suntech 450W Half-Cell N-Type TOPCon TRANSPARENT BLACK BIFACIAL Module
Suntech 450W Half-Cell N-Type TOPCon TRANSPARENT BLACK BIFACIAL Module
High module conversion efficiency
Module efficiency up to 22.8% achieved through advanced cell technology and manufacturing process.
Multi busbar technology
Superior optical utilization and current collection capability, effectively improving product power and reliability.
Excellent low light performance
More power output in low light conditions such as cloudy days, mornings and evenings
Superior load-bearing capability
Module certified to withstand 5400 Pa front side max static test load and 2400 Pa rear side max static test load.*
Availability:In stock
SKU STP450S-H48-Nth+
Suntech 450W Half-Cell N-Type TOPCon Transparent Black Bifacial Module
The Suntech 450W Half-Cell N-Type TOPCon Transparent Black Bifacial Module is engineered for high performance and modern design. Featuring advanced N-Type TOPCon technology and half-cell architecture, this module delivers enhanced efficiency, improved reliability, and superior energy yield.

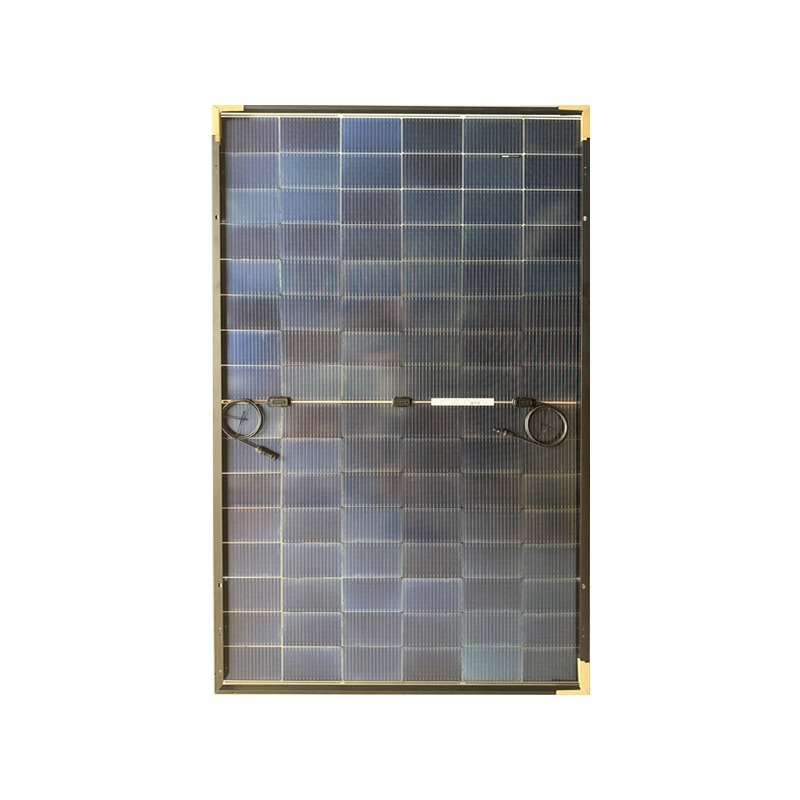

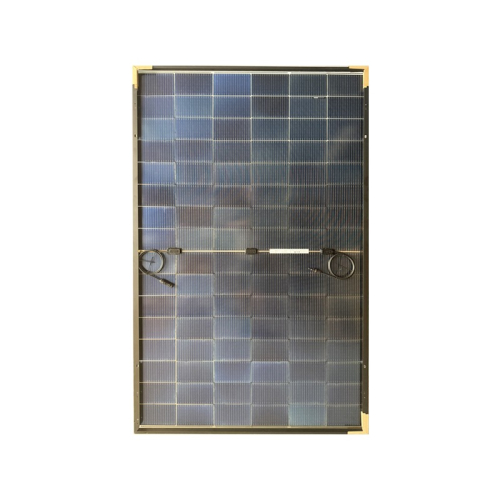

Its bifacial design allows power generation from both the front and rear sides, capturing reflected sunlight to boost overall output. The transparent black finish provides a sleek, premium appearance—ideal for installations where aesthetics and performance are equally important.
Key Features
- Power Output: 450W
- Cell Technology: N-Type TOPCon
- Cell Design: Half-Cell
- Type: Bifacial with transparent backsheet
- Design: Transparent Black for modern aesthetics
- Higher efficiency and lower degradation rate
- Improved performance in low-light conditions
- Enhanced resistance to environmental stress
Applications
- Residential rooftop systems
- Commercial and industrial installations
- Carports, canopies, and elevated structures
- Utility-scale solar projects
Downloads
Installation Manual Salt Mist Certificate Warranty
Mechanical Characteristics
| Max Power at STC (pMax) | 450W |
|---|---|
| Operating Voltage (Vmp) | 30.04V |
| Operating Current (Imp) | 14.98 |
| Open circuit voltage (Voc) | 35.37 |
| Short Circuit Current (Isc) | 15.92 |
| Cell type | N-Type Monocrystalline silicon |
| Number of Cells | 96 (6 × 16) |
| Module Frame | Anodized aluminium alloy |
| Efficiency | 22.5% |
| Connectors | STP-XC4 (Standard)/ MC4-EVO2 (Optional) |
| Operating temperature range | -40°C ~ +70°C |
Shipping Specifications
| Pieces per pallet | 36 |
|---|---|
| Solar Pallet Cubic | 2526048000 |
| Pallet Length (m) | 1260 |
| Pallet Width (m) | 1120 |
| Pallet Height (m) | 1796 |
| Panel Depth (mm) | 30 |
| Panel Width (mm) | 1134 |
| Panel Height (mm) | 1762 |
| Weight (kg) | 24.80 |
