Suntech 510W N-Type TOPCon Glass-Glass MONOFACIAL Full Black Module
Suntech 510W N-Type TOPCon Glass-Glass MONOFACIAL Full Black Module
Aesthetic appearance design
Elegant design in all-black appearance, harmonious integration with the components of the building to provide an intense aesthetic experience
Lightweight double glass
Lightweight double glass structure which effectively reduces the rate of module breakage. The ideal module size and weight make handling and installation easier
Withstand harsh environments
Reliable quality that makes module resistant even to high temperatures, salt water and ammonia
Superior load-bearing capability
Module certified to withstand 5400 Pa front side max static test load and 2400 Pa rear side max static test load.*
Availability:In stock
SKU STP510S-H54-Nfb+
BrandSuntech

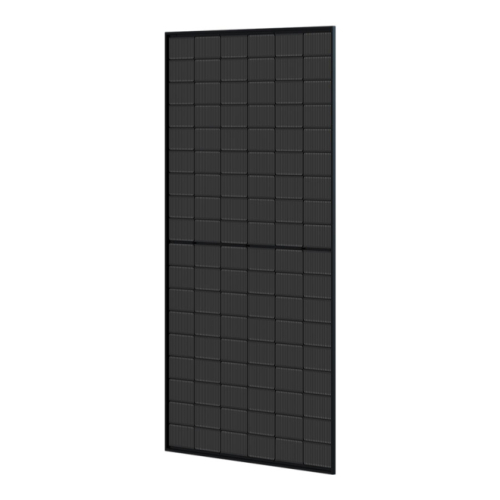

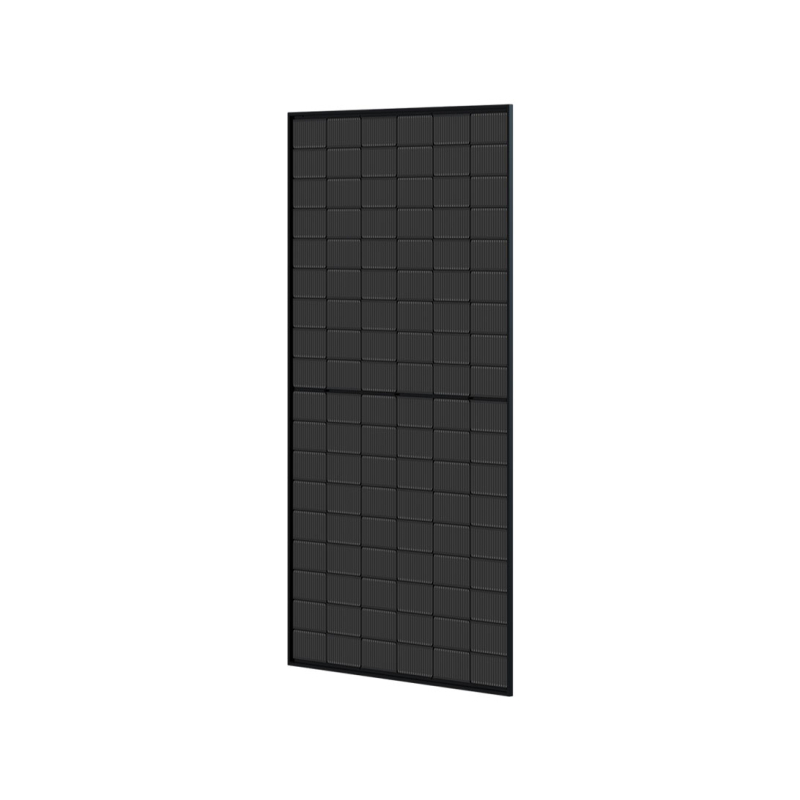

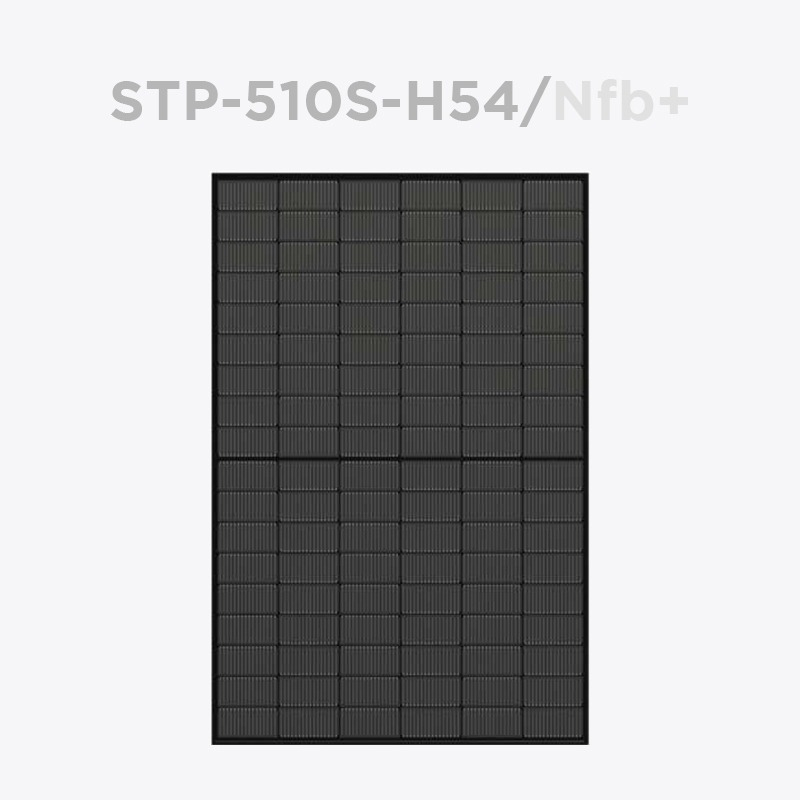

Suntech 510W N-Type TOPCon Glass-Glass Monofacial Full Black Module
The Suntech 510W N-Type TOPCon Glass-Glass Monofacial Full Black Module is a high-efficiency solar panel designed for superior performance, durability, and sleek aesthetics. Utilizing advanced N-Type TOPCon cell technology, it delivers higher energy yields, improved temperature performance, and reduced degradation over time.
Key Features
- Higher energy yield and long-term reliability
- Excellent performance in low-light conditions
- Enhanced resistance to moisture, heat, and mechanical stress
- Elegant full black design for modern installations
Applications
- Residential rooftop systems
- Commercial and industrial projects
- Utility-scale solar farms
Downloads
Installation Manual Salt Mist Certificate Warranty
Mechanical Characteristics
| Max Power at STC (pMax) | 510W |
|---|---|
| Operating Voltage (Vmp) | 33.70V |
| Operating Current (Imp) | 15.13 |
| Open circuit voltage (Voc) | 40.54 |
| Short Circuit Current (Isc) | 15.95 |
| Cell type | N-Type Monocrystalline silicon |
| Number of Cells | 108 (6x18) |
| Module Frame | Anodized aluminium alloy |
| Efficiency | 22.9% |
| Connectors | Wuxi Suntech STP-XC4-4 (Default)/ Staubli PV-KST4-EVO2A/xy (Optional) |
| Operating temperature range | -40°C ~ 85°C |

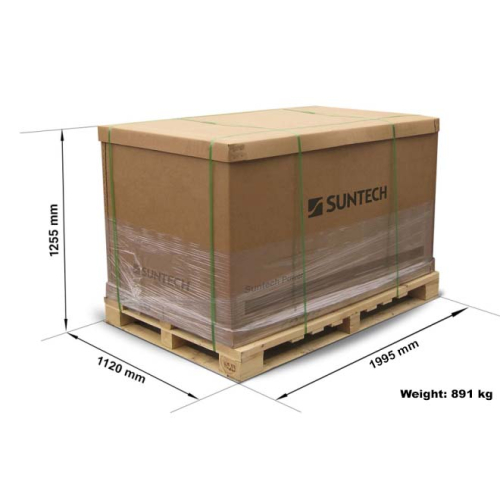

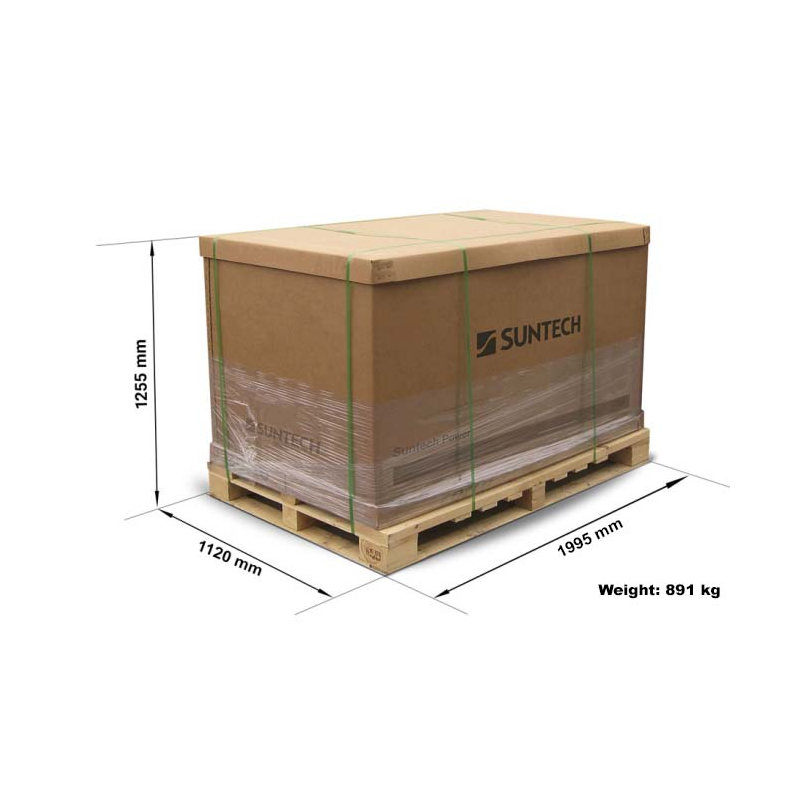

Shipping Specifications
| Pieces per pallet | 36 |
|---|---|
| Solar Pallet Cubic | 3 |
| Pallet Length (m) | 1.255 |
| Pallet Width (m) | 1.12 |
| Pallet Height (m) | 1.995 |
| Panel Depth (mm) | 30 |
| Panel Width (mm) | 1134 |
| Panel Height (mm) | 1961 |
| Weight (kg) | 23.50 |
